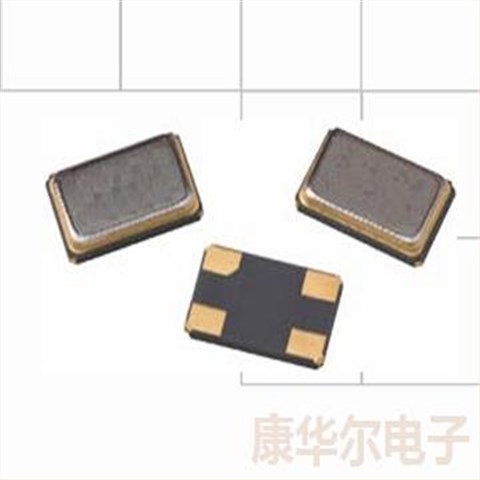

405I35E14M31818石英晶体,无线通信晶振,CTS进口晶振,405谐振器,5032无源贴片
| 型号名称Model name： | 405 | 品牌 brand ： | CTS/西迪斯 |
| 原厂型号Original model ： | 405I35E14M31818 | 尺寸size ： | 5.00 x 3.20mm |
| 产品类型Product type： | 5032贴片晶振 | 高度 Package Height： | 1.00mm |
| 频率frequency ： | 14.31818MHz | 工作温度Operating Temperature ： | -40℃~85℃ |
| 频率公差Tolerance ： | ±30ppm | 等效串联电阻 ESR ： | 60 Ohms |
| 负载电容 Load capacitance ： | 20pF | 包装类型Packaging Type : | Tape/Reel |
| 产地Origin： | 欧美晶振 | 制造商Manufacturer ： | CTS/西迪斯 |
| 安装方式Installation ： | Surface Mount | 最小包装数 MPQ ： | 1000 / reel |
405I35E14M31818石英晶体,无线通信晶振,CTS进口晶振,405谐振器,5032无源贴片
| 405C11A08M00000 | CTS/西迪斯 | 405 | MHz Crystal | 8MHz | ±10ppm | 10pF |
| 405C11A10M00000 | CTS/西迪斯 | 405 | MHz Crystal | 10MHz | ±10ppm | 10pF |
| 405C11A11M05920 | CTS/西迪斯 | 405 | MHz Crystal | 11.0592MHz | ±10ppm | 10pF |
| 405C11A12M00000 | CTS/西迪斯 | 405谐振器 | MHz Crystal | 12MHz | ±10ppm | 10pF |
| 405C11A12M28800 | CTS/西迪斯 | 405 | MHz Crystal | 12.288MHz | ±10ppm | 10pF |
| 405C11A12M80000 | CTS/西迪斯 | 405 | MHz Crystal | 12.8MHz | ±10ppm | 10pF |
| 405C11A13M00000 | CTS/西迪斯 | 405 | MHz Crystal | 13MHz | ±10ppm | 10pF |
| 405C11A13M50000 | CTS/西迪斯 | 405 | MHz Crystal | 13.5MHz | ±10ppm | 10pF |
| 405C11A13M56000 | CTS/西迪斯 | 405 | MHz Crystal | 13.56MHz | ±10ppm | 10pF |
| 405C11A14M40000 | CTS/西迪斯 | 405 | MHz Crystal | 14.4MHz | ±10ppm | 10pF |
| 405C11A14M74560 | CTS/西迪斯 | 405 | MHz Crystal | 14.7456MHz | ±10ppm | 10pF |
| 405C11A15M36000 | CTS/西迪斯 | 405 | MHz Crystal | 15.36MHz | ±10ppm | 10pF |
| 405C11A16M00000 | CTS/西迪斯 | 405 | MHz Crystal | 16MHz | ±10ppm | 10pF |
| 405C11A16M38400 | CTS/西迪斯 | 405 | MHz Crystal | 16.384MHz | ±10ppm | 10pF |
| 405C11A16M80000 | CTS/西迪斯 | 405 | MHz Crystal | 16.8MHz | ±10ppm | 10pF |
| 405C11A18M43200 | CTS/西迪斯 | 405 | MHz Crystal | 18.432MHz | ±10ppm | 10pF |
| 405C11A19M20000 | CTS/西迪斯 | 405 | MHz Crystal | 19.2MHz | ±10ppm | 10pF |
| 405C11A19M44000 | CTS/西迪斯 | 405 | MHz Crystal | 19.44MHz | ±10ppm | 10pF |
| 405C11A19M68000 | CTS/西迪斯 | 405 | MHz Crystal | 19.68MHz | ±10ppm | 10pF |
| 405C11A19M80000 | CTS/西迪斯 | 405 | MHz Crystal | 19.8MHz | ±10ppm | 10pF |
| 405C11A20M00000 | CTS/西迪斯 | 405 | MHz Crystal | 20MHz | ±10ppm | 10pF |
| 405C11A22M00000 | CTS/西迪斯 | 405 | MHz Crystal | 22MHz | ±10ppm | 10pF |
| 405C11A24M00000 | CTS/西迪斯 | 405 | MHz Crystal | 24MHz | ±10ppm | 10pF |
| 405C11A24M57600 | CTS/西迪斯 | 405 | MHz Crystal | 24.576MHz | ±10ppm | 10pF |
| 405C11A25M00000 | CTS/西迪斯 | 405 | MHz Crystal | 25MHz | ±10ppm | 10pF |
| 405C11A26M00000 | CTS/西迪斯 | 405 | MHz Crystal | 26MHz | ±10ppm | 10pF |
| 405C11A28M63636 | CTS/西迪斯 | 405 | MHz Crystal | 28.63636MHz | ±10ppm | 10pF |
| 405C11A29M49120 | CTS/西迪斯 | 405 | MHz Crystal | 29.4912MHz | ±10ppm | 10pF |
| 405C11A30M00000 | CTS/西迪斯 | 405 | MHz Crystal | 30MHz | ±10ppm | 10pF |
| 405C11A40M00000 | CTS/西迪斯 | 405 | MHz Crystal | 40MHz | ±10ppm | 10pF |
| 405C11A44M00000 | CTS/西迪斯 | 405 | MHz Crystal | 44MHz | ±10ppm | 10pF |
| 405C11A48M00000 | CTS无源晶体 | 405 | MHz Crystal | 48MHz | ±10ppm | 10pF |
| 405C11B26M00000 | CTS/西迪斯 | 405 | MHz Crystal | 26MHz | ±10ppm | 13pF |
| 405C22D25M00000 | CTS/西迪斯 | 405 | MHz Crystal | 25MHz | ±20ppm | 18pF |
| 405C24A13M00000 | CTS/西迪斯 | 405 | MHz Crystal | 13MHz | ±20ppm | 10pF |
| 405C25D08M00000 | CTS/西迪斯 | 405 | MHz Crystal | 8MHz | ±20ppm | 18pF |
| 405C25D13M56000 | CTS/西迪斯 | 405 | MHz Crystal | 13.56MHz | ±20ppm | 18pF |
| 405C25D25M00000 | CTS/西迪斯 | 405 | MHz Crystal | 25MHz | ±20ppm | 18pF |
| 405C33B25M00000 | CTS/西迪斯 | 405 | MHz Crystal | 25MHz | ±30ppm | 13pF |
