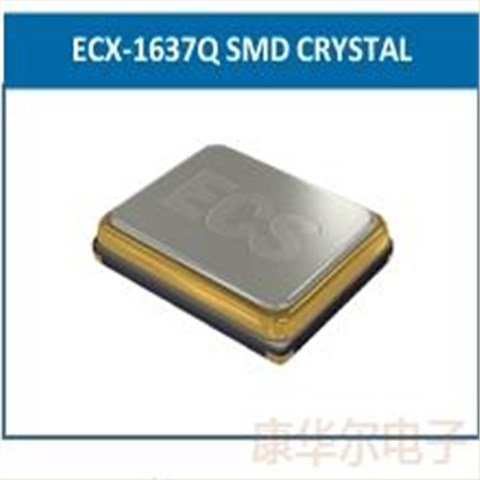

2016车规晶振,ECX-1637Q晶振,ECS汽车电子晶体,ECS-250-10-37Q-AES-TR,微型贴片晶体
| 原厂型号Original model ： | ECS-250-10-37Q-AES-TR | 型号名称Model name： | ECX-1637Q |
| 产品类型Product type： | 汽车级晶振 | 品牌 brand ： | ECS晶振 |
| 频率frequency ： | 25MHz | 产地Origin： | 美国 |
| 频率公差Tolerance ： | ±25ppm | 高度 Package Height： | 0.55mm |
| 负载电容 Load capacitance ： | 10pF | 等效串联电阻 ESR ： | 100 Ohms |
| 工作温度Operating Temperature ： | -40℃~125℃ | 包装/类型Packaging / Type : | Tape/Reel |

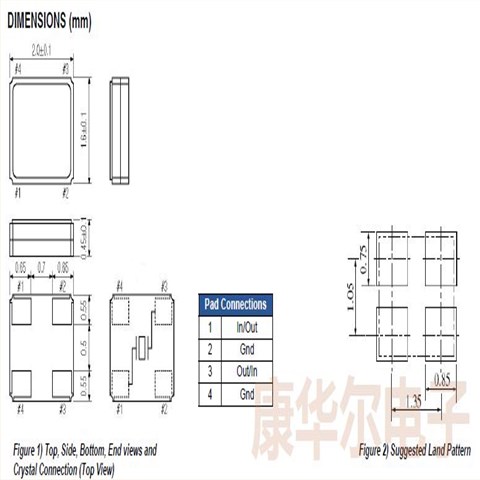

| 尺寸size ： | 2.00mm x 1.60mm | 最小包装数 MPQ ： | 3000 pcs |
| 制造商Manufacturer ： | ECS晶振 | 安装方式Installation ： | Surface Mount |
2016车规晶振,ECX-1637Q晶振,ECS汽车电子晶体,ECS-250-10-37Q-AES-TR,微型贴片晶体
| ECS-250-10-37Q-AES-TR | ECS | ECX-1637Q | MHz Crystal | 25MHz | ±25ppm | 10pF | -40℃~125℃ |
| ECS-271.2-10-37Q-ES-TR | ECS | ECX-1637Q | MHz Crystal | 27.12MHz | ±30ppm | 10pF | -40℃~125℃ |
| ECS-271.2-10-37Q-AES-TR | ECS | ECX-1637Q | MHz Crystal | 27.12MHz | ±25ppm | 10pF | -40℃~125℃ |
| ECS-245.7-10-37Q-ES-TR | ECS | ECX-1637Q | MHz Crystal | 24.576MHz | ±30ppm | 10pF | -40℃~125℃ |
| ECS-240-10-37Q-ES-TR | ECS | ECX-1637Q | MHz Crystal | 24MHz | ±30ppm | 10pF | -40℃~125℃ |
| ECS-200-10-37Q-ES-TR | ECS | ECX-1637Q | MHz Crystal | 20MHz | ±30ppm | 10pF | -40℃~125℃ |
| ECS-300-10-37Q-ES-TR | ECS | ECX-1637Q | MHz Crystal | 30MHz | ±30ppm | 10pF | -40℃~125℃ |
| ECS-260-10-37Q-ES-TR | ECS | ECX-1637Q | MHz Crystal | 26MHz | ±30ppm | 10pF | -40℃~125℃ |
| ECS-320-10-37Q-ES-TR | ECS | ECX-1637Q | MHz Crystal | 32MHz | ±30ppm | 10pF | -40℃~125℃ |
| ECS-250-10-37Q-ES-TR | ECS | ECX-1637Q | MHz Crystal | 25MHz | ±30ppm | 10pF | -40℃~125℃ |
| ECS-250-8-37Q-ES-TR | ECS | ECX-1637Q | MHz Crystal | 25MHz | ±30ppm | 8pF | -40℃~125℃ |
| ECS-200-10-37Q-AES-TR | ECS | ECX-1637Q | MHz Crystal | 20MHz | ±25ppm | 10pF | -40℃~125℃ |
| ECS-192-10-37Q-ES-TR | ECS | ECX-1637Q | MHz Crystal | 19.2MHz | ±30ppm | 10pF | -40℃~125℃ |
| ECS-192-10-37Q-EN-TR | ECS | ECX-1637Q | MHz Crystal | 19.2MHz | ±30ppm | 10pF | -40℃~85℃ |
| ECS-200-10-37Q-EN-TR | ECS | ECX-1637Q | MHz Crystal | 20MHz | ±30ppm | 10pF | -40℃~85℃ |
| ECS-240-10-37Q-EN-TR | ECS | ECX-1637Q | 进口石英晶体 | 24MHz | ±30ppm | 10pF | -40℃~85℃ |
| ECS-245.7-10-37Q-EN-TR | ECS | ECX-1637Q | MHz Crystal | 24.576MHz | ±30ppm | 10pF | -40℃~85℃ |
| ECS-250-10-37Q-EN-TR | ECS | ECX-1637Q | MHz Crystal | 25MHz | ±30ppm | 10pF | -40℃~85℃ |
| ECS-260-10-37Q-EN-TR | ECS | ECX-1637Q | MHz Crystal | 26MHz | ±30ppm | 10pF | -40℃~85℃ |
| ECS-270-10-37Q-EN-TR | ECS | ECX-1637Q | MHz Crystal | 27MHz | ±30ppm | 10pF | -40℃~85℃ |
| ECS-271.2-10-37Q-EN-TR | ECS | ECX-1637Q | MHz Crystal | 27.12MHz | ±30ppm | 10pF | -40℃~85℃ |
| ECS-300-10-37Q-EN-TR | ECS | ECX-1637Q | MHz Crystal | 30MHz | ±30ppm | 10pF | -40℃~85℃ |
| ECS-320-10-37Q-EN-TR | ECS | ECX-1637Q | MHz Crystal | 32MHz | ±30ppm | 10pF | -40℃~85℃ |
| ECS-400-10-37Q-EN-TR | ECS | ECX-1637Q | MHz Crystal | 40MHz | ±30ppm | 10pF | -40℃~85℃ |
| ECS-480-10-37Q-EN-TR | ECS | ECX-1637Q | MHz Crystal | 48MHz | ±30ppm | 10pF | -40℃~85℃ |
| ECS-192-10-37Q-EP-TR | ECS | ECX-1637Q | MHz Crystal | 19.2MHz | ±30ppm | 10pF | -40℃~105℃ |
| ECS-200-10-37Q-EP-TR | ECS | ECX-1637Q | MHz Crystal | 20MHz | ±30ppm | 10pF | -40℃~105℃ |
| ECS-240-10-37Q-EP-TR | ECS | ECX-1637Q | MHz Crystal | 24MHz | ±30ppm | 10pF | -40℃~105℃ |
| ECS-245.7-10-37Q-EP-TR | ECS | ECX-1637Q | MHz Crystal | 24.576MHz | ±30ppm | 10pF | -40℃~105℃ |
| ECS-250-10-37Q-EP-TR | ECS | ECX-1637Q | MHz Crystal | 25MHz | ±30ppm | 10pF | -40℃~105℃ |
| ECS-260-10-37Q-EP-TR | ECS | ECX-1637Q | MHz Crystal | 26MHz | ±30ppm | 10pF | -40℃~105℃ |
| ECS-270-10-37Q-EP-TR | ECS | ECX-1637Q | MHz Crystal | 27MHz | ±30ppm | 10pF | -40℃~105℃ |
| ECS-271.2-10-37Q-EP-TR | ECS | ECX-1637Q | MHz Crystal | 27.12MHz | ±30ppm | 10pF | -40℃~105℃ |
| ECS-300-10-37Q-EP-TR | ECS | ECX-1637Q | MHz Crystal | 30MHz | ±30ppm | 10pF | -40℃~105℃ |
| ECS-320-10-37Q-EP-TR | ECS | ECX-1637Q | MHz Crystal | 32MHz | ±30ppm | 10pF | -40℃~105℃ |
| ECS-400-10-37Q-EP-TR | ECS | ECX-1637Q | MHz Crystal | 40MHz | ±30ppm | 10pF | -40℃~105℃ |
| ECS-480-10-37Q-EP-TR | ECS | ECX-1637Q | MHz Crystal | 48MHz | ±30ppm | 10pF | -40℃~105℃ |
| ECS-400-10-37Q-ES-TR | ECS | ECX-1637Q | 2016谐振器 | 40MHz | ±30ppm | 10pF | -40℃~125℃ |
| ECS-480-10-37Q-ES-TR | ECS | ECX-1637Q | MHz Crystal | 48MHz | ±30ppm | 10pF | -40℃~125℃ |
| ECS-270-10-37Q-ES-TR | ECS | ECX-1637Q | MHz Crystal | 27MHz | ±30ppm | 10pF | -40℃~125℃ |
