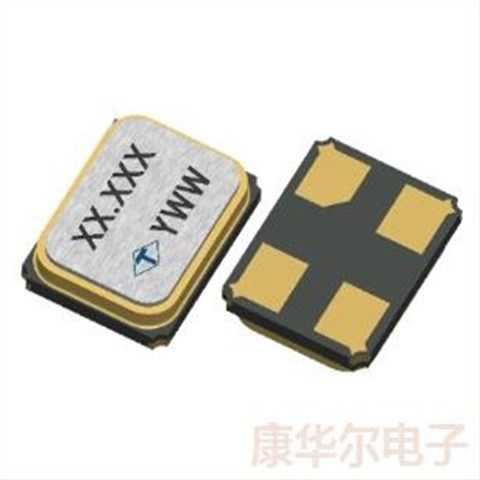

移动电话晶振,1612石英谐振器,X3ABBCNANF-26.000000,泰艺贴片晶体,X3无源晶振
| 型号名称Model name： | X3 | 品牌 brand ： | TAITIEN晶振 |

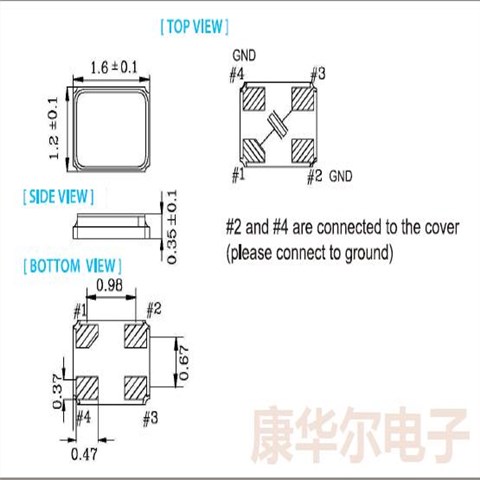

| 原厂型号Original model ： | X3ABBCNANF-26.000000 | 尺寸size ： | 1.65 x 1.25mm |
| 产品类型Product type： | 1612贴片晶体 | 高度 Package Height： | 0.40mm |
| 频率frequency ： | 26MHz | 工作温度Operating Temperature ： | -20℃~70℃ |
| 频率公差Tolerance ： | ±10ppm | 等效串联电阻 ESR ： | 150 Ohms |
| 负载电容 Load capacitance ： | 8pF | 包装类型Packaging Type : | Tape/Reel |
| 产地Origin： | 中国台湾 | 制造商Manufacturer ： | 台产泰艺晶振 |
| 安装方式Installation ： | Surface Mount | 最小包装数 MPQ ： | 3000 / reel |
移动电话晶振,1612石英谐振器,X3ABBCNANF-26.000000,泰艺贴片晶体,X3无源晶振
| X3AEELNANF-50.000000 | TAITIEN晶振 | X3 | 50MHz | ±30ppm | 8pF |
| X3ABBCNANF-32.000000 | TAITIEN晶振 | X3 | 32MHz | ±10ppm | 8pF |
| X3CBBCNANF-26.000000 | TAITIEN晶振 | X3 | 26MHz | ±10ppm | 10pF |
| X3LBBCNANF-32.000000 | TAITIEN晶振 | X3 | 32MHz | ±10ppm | 6pF |
| X3CBBCNANF-32.000000 | TAITIEN晶振 | X3 | 32MHz | ±10ppm | 10pF |
| X3ABBCNANF-26.000000 | TAITIEN晶振 | X3 | 26MHz | ±10ppm | 8pF |
| X3AEELNANF-26.000000 | TAITIEN晶振 | X3 | 26MHz | ±30ppm | 8pF |
| X3LEELNANF-30.000000 | TAITIEN晶振 | X3 | 30MHz | ±30ppm | 6pF |
| X3AEEJNANF-30.000000 | TAITIEN晶振 | X3 | 30MHz | ±30ppm | 8pF |
| X3LEECNANF-40.000000 | TAITIEN晶振 | X3 | 40MHz | ±30ppm | 6pF |
| X3LEELNANF-32.000000 | TAITIEN晶振 | X3 | 32MHz | ±30ppm | 6pF |
| X3LEEJNANF-40.000000 | TAITIEN晶振 | X3 | 40MHz | ±30ppm | 6pF |
| X3AEEJNANF-50.000000 | TAITIEN晶振 | X3 | 50MHz | ±30ppm | 8pF |
| X3AEEJNANF-32.000000 | TAITIEN晶振 | X3 | 32MHz | ±30ppm | 8pF |
| X3AEELNANF-38.400000 | TAITIEN晶振 | X3 | 38.4MHz | ±30ppm | 8pF |
| X3LEEJNANF-50.000000 | TAITIEN晶振 | X3 | 50MHz | ±30ppm | 6pF |
| X3LEEJNANF-26.000000 | TAITIEN晶振 | X3 | 26MHz | ±30ppm | 6pF |
| X3LEEJNANF-38.400000 | TAITIEN晶振 | X3 | 38.4MHz | ±30ppm | 6pF |
| X3LEELNANF-50.000000 | TAITIEN晶振 | X3 | 50MHz | ±30ppm | 6pF |
| X3DBBCNANF-26.000000 | TAITIEN晶振 | X3 | 26MHz | ±10ppm | 12pF |
| X3DCCCNANF-24.000000 | TAITIEN晶振 | X3 | 24MHz | ±20ppm | 12pF |
| X3FBPDNANF-37.400000 | TAITIEN晶振 | X3 | 37.4MHz | ±10ppm | 16pF |
| X3FEECNANF-24.000000 | TAITIEN晶振 | X3 | 24MHz | ±30ppm | 16pF |
| X3HCECNANF-25.000000 | TAITIEN晶振 | X3 | 25MHz | ±20ppm | 20pF |
| X3AEEJNANF-26.000000 | TAITIEN无源晶振 | X3 | 26MHz | ±30ppm | 8pF |
| X3AEEJNANF-27.000000 | TAITIEN晶振 | X3 | 27MHz | ±30ppm | 8pF |
| X3AEEJNANF-27.120000 | TAITIEN晶振 | X3 | 27.12MHz | ±30ppm | 8pF |
| X3AEEJNANF-38.400000 | TAITIEN晶振 | X3 | 38.4MHz | ±30ppm | 8pF |
| X3AEEJNANF-40.000000 | TAITIEN晶振 | X3 | 40MHz | ±30ppm | 8pF |
| X3AEEJNANF-48.000000 | TAITIEN晶振 | X3 | 48MHz | ±30ppm | 8pF |
| X3AEELNANF-27.000000 | TAITIEN晶振 | X3 | 27MHz | ±30ppm | 8pF |
| X3AEELNANF-27.120000 | TAITIEN晶振 | X3 | 27.12MHz | ±30ppm | 8pF |
| X3AEELNANF-30.000000 | TAITIEN晶振 | X3 | 30MHz | ±30ppm | 8pF |
| X3AEELNANF-32.000000 | TAITIEN晶振 | X3 | 32MHz | ±30ppm | 8pF |
| X3AEELNANF-40.000000 | TAITIEN晶振 | X3 | 40MHz | ±30ppm | 8pF |
| X3AEELNANF-48.000000 | TAITIEN晶振 | X3 | 48MHz | ±30ppm | 8pF |
| X3LEECNANF-26.000000 | TAITIEN晶振 | X3 | 26MHz | ±30ppm | 6pF |
