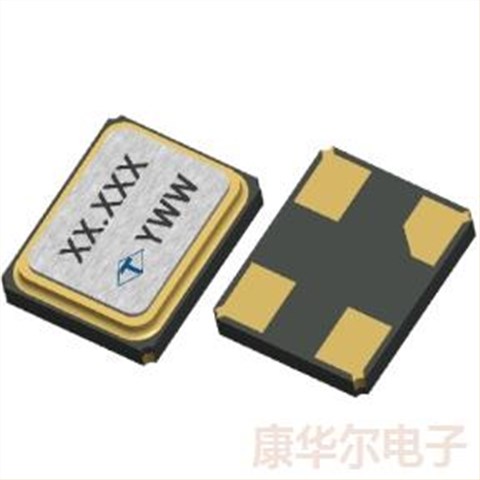

TAITIEN无源晶振,XY谐振器,无线局域网晶振,2520晶体,XYABBCNANF-26.000000
| 型号名称Model name： | XY | 品牌 brand ： | TAITIEN晶振 |

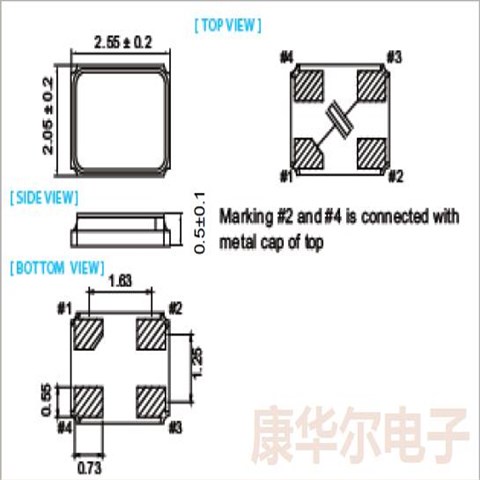

| 原厂型号Original model ： | XYABBCNANF-26.000000 | 尺寸size ： | 2.55 x 2.05mm |
| 产品类型Product type： | MHz Crystal | 高度 Package Height： | 0.55mm |
| 频率frequency ： | 26MHz | 工作温度Operating Temperature ： | -20℃~70℃ |
| 频率公差Tolerance ： | ±10ppm | 等效串联电阻 ESR ： | 80 Ohms |
| 负载电容 Load capacitance ： | 8pF | 包装类型Packaging Type : | Tape/Reel |
| 产地Origin： | 台湾 | 制造商Manufacturer ： | TAITIEN晶振 |
| 安装方式Installation ： | Surface Mount | 最小包装数 MPQ ： | 3000 / reel |
TAITIEN无源晶振,XY谐振器,无线局域网晶振,2520晶体,XYABBCNANF-26.000000
| XYDBBCNANF-32.000000 | TAITIEN晶振 | XY | 32MHz | ±10ppm | 12pF |
| XYABBCNANF-32.000000 | TAITIEN晶振 | XY | 32MHz | ±10ppm | 8pF |
| XYCBBCNANF-32.000000 | TAITIEN晶振 | XY | 32MHz | ±10ppm | 10pF |
| XYABBCNANF-26.000000 | TAITIEN晶振 | XY | 26MHz | ±10ppm | 8pF |
| XYCBBCNANF-26.000000 | TAITIEN晶振 | XY | 26MHz | ±10ppm | 10pF |
| XYDBBCNANF-26.000000 | TAITIEN晶振 | XY | 26MHz | ±10ppm | 12pF |
| XYAEECNANF-38.400000 | TAITIEN晶振 | XY | 38.4MHz | ±30ppm | 8pF |
| XYAEECNANF-32.000000 | TAITIEN晶振 | XY | 32MHz | ±30ppm | 8pF |
| XYLEECNANF-32.000000 | TAITIEN晶振 | XY | 32MHz | ±30ppm | 6pF |
| XYLEECNANF-27.120000 | TAITIEN晶振 | XY | 27.12MHz | ±30ppm | 6pF |
| XYCEECNANF-27.120000 | TAITIEN晶振 | XY | 27.12MHz | ±30ppm | 10pF |
| XYFEECNANF-24.000000 | TAITIEN晶振 | XY | 24MHz | ±30ppm | 16pF |
| XYAEECNANF-50.000000 | TAITIEN晶振 | XY | 50MHz | ±30ppm | 8pF |
| XYCBBCNANF-16.000000 | TAITIEN晶振 | XY | 16MHz | ±10ppm | 10pF |
| XYGBCLNANF-24.000000 | TAITIEN晶振 | XY | 24MHz | ±10ppm | 18pF |
| XYFBBCNANF-20.000000 | TAITIEN晶振 | XY | 20MHz | ±10ppm | 16pF |
| XYCCCCNANF-19.200000 | TAITIEN晶振 | XY | 19.2MHz | ±20ppm | 10pF |
| XYCEECNANF-32.000000 | TAITIEN晶振 | XY | 32MHz | ±30ppm | 10pF |
| XYHEECNANF-30.000000 | TAITIEN晶振 | XY | 30MHz | ±30ppm | 20pF |
| XYABBCNANF-16.000000 | TAITIEN晶振 | XY | 16MHz | ±10ppm | 8pF |
| XYABBCNANF-30.000000 | TAITIEN晶振 | XY | 30MHz | ±10ppm | 8pF |
| XYCCCCNANF-25.000000 | 2520无源晶振 | XY | 25MHz | ±20ppm | 10pF |
| XYDEECNANF-24.000000 | TAITIEN晶振 | XY | 24MHz | ±30ppm | 12pF |
| XYGEECNANF-25.000000 | TAITIEN晶振 | XY | 25MHz | ±30ppm | 18pF |
| XYHCCCNANF-30.000000 | TAITIEN晶振 | XY | 30MHz | ±20ppm | 20pF |
| XYABBCNANF-24.576000 | TAITIEN晶振 | XY | 24.576MHz | ±10ppm | 8pF |
| XYAEECNANF-26.000000 | TAITIEN晶振 | XY | 26MHz | ±30ppm | 8pF |
| XYAEECNANF-27.000000 | TAITIEN晶振 | XY | 27MHz | ±30ppm | 8pF |
| XYAEECNANF-27.120000 | TAITIEN晶振 | XY | 27.12MHz | ±30ppm | 8pF |
| XYAEECNANF-30.000000 | TAITIEN晶振 | XY | 30MHz | ±30ppm | 8pF |
| XYAEECNANF-40.000000 | TAITIEN晶振 | XY | 40MHz | ±30ppm | 8pF |
| XYAEECNANF-48.000000 | TAITIEN晶振 | XY | 48MHz | ±30ppm | 8pF |
| XYBBBCNANF-26.000000 | TAITIEN晶振 | XY | 26MHz | ±10ppm | 9pF |
| XYLEECNANF-26.000000 | TAITIEN晶振 | XY | 26MHz | ±30ppm | 6pF |
| XYLEECNANF-27.000000 | TAITIEN晶振 | XY | 27MHz | ±30ppm | 6pF |
| XYLEECNANF-30.000000 | TAITIEN晶振 | XY | 30MHz | ±30ppm | 6pF |
| XYLEECNANF-38.400000 | TAITIEN晶振 | XY | 38.4MHz | ±30ppm | 6pF |
| XYLEECNANF-40.000000 | TAITIEN晶振 | XY | 40MHz | ±30ppm | 6pF |
| XYLEECNANF-48.000000 | TAITIEN晶振 | XY | 48MHz | ±30ppm | 6pF |
| XYLEECNANF-50.000000 | TAITIEN晶振 | XY | 50MHz | ±30ppm | 6pF |
| XYCBBCNANF-20.000000 | TAITIEN晶振 | XY | 20MHz | ±10ppm | 10pF |
