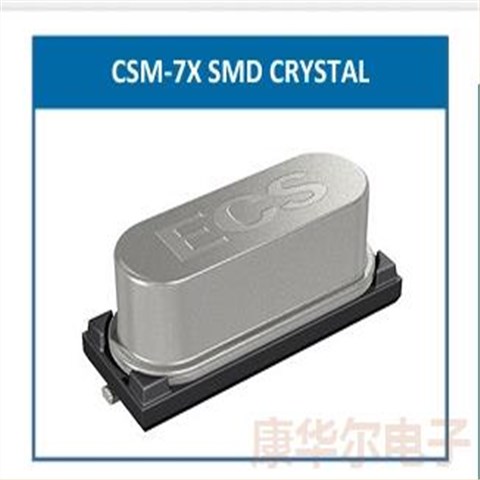

ECS贴片晶振,ECS-245.7-20-5PX-TR,进口晶体谐振器,CSM-7X晶体,HC-49/US晶振
| 型号名称Model name： | CSM-7X | 品牌 brand ： | ECS晶振 |

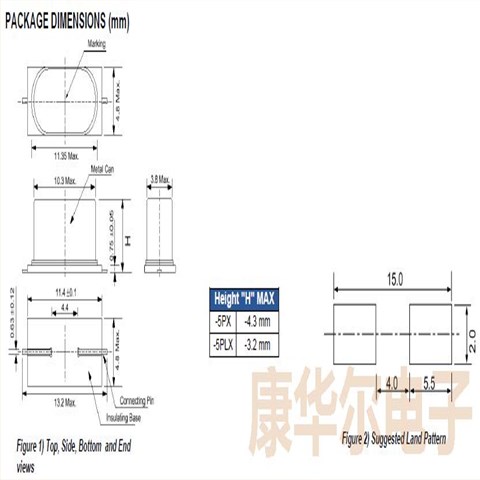

| 原厂型号Original model ： | ECS-245.7-20-5PX-TR | 尺寸size ： | 11.40mm x 4.80mm |
| 产品类型Product type： | 进口无源贴片 | 高度 Package Height： | 4.30mm |
| 频率frequency ： | 24.576MHz | 工作温度Operating Temperature ： | -10℃~70℃ |
| 频率公差Tolerance ： | ±30ppm | 等效串联电阻 ESR ： | 30 Ohms |
| 负载电容 Load capacitance ： | 20pF | 包装/类型Packaging / Type : | HC-49/US晶振 |
| 产地Origin： | 美国 | 制造商Manufacturer ： | 伊西斯 |
| 安装方式Installation ： | Surface Mount | 最小包装数 MPQ ： | 1000 pcs |
ECS贴片晶振,ECS-245.7-20-5PX-TR,进口晶体谐振器,CSM-7X晶体,HC-49/US晶振
| ECS-100-18-5PX-TR | ECS | CSM-7X | MHz Crystal | 10MHz | ±30ppm | 18pF | -10℃~70℃ |
| ECS-245.7-20-5PX-TR | ECS | CSM-7X | MHz Crystal | 24.576MHz | ±30ppm | 20pF | -10℃~70℃ |
| ECS-50-20-5PX-TR | ECS | CSM-7X | MHz Crystal | 5MHz | ±30ppm | 20pF | -10℃~70℃ |
| ECS-73-18-5PXEN-TR | ECS | CSM-7X | MHz Crystal | 7.3728MHz | ±30ppm | 18pF | -40℃~85℃ |
| ECS-160-20-5PX-TR | ECS | CSM-7X | MHz Crystal | 16MHz | ±30ppm | 20pF | -10℃~70℃ |
| ECS-36-20-5PX-TR | ECS | CSM-7X | MHz Crystal | 3.6864MHz | ±30ppm | 20pF | -10℃~70℃ |
| ECS-250-18-5PX-F-TR | ECS | CSM-7X | MHz Crystal | 25MHz | ±30ppm | 18pF | -10℃~70℃ |
| ECS-35-17-5PX-TR | ECS | CSM-7X | MHz Crystal | 3.579545MHz | ±30ppm | 17pF | -10℃~70℃ |
| ECS-240-20-5PX-TR | ECS | CSM-7X | MHz Crystal | 24MHz | ±30ppm | 20pF | -10℃~70℃ |
| ECS-120-18-5PX-TR | ECS | CSM-7X | MHz Crystal | 12MHz | ±30ppm | 18pF | -10℃~70℃ |
| ECS-61-32-5PX-TR | ECS | CSM-7X | MHz Crystal | 6.144MHz | ±30ppm | 32pF | -10℃~70℃ |
| ECS-80-20-5PX-TR | ECS | CSM-7X | MHz Crystal | 8MHz | ±30ppm | 20pF | -10℃~70℃ |
| ECS-184-20-5PX-TR | ECS | CSM-7X | 49贴片晶振 | 18.432MHz | ±30ppm | 20pF | -10℃~70℃ |
| ECS-240-12-5PX-TR | ECS | CSM-7X | MHz Crystal | 24MHz | ±30ppm | 12pF | -10℃~70℃ |
| ECS-110.5-20-5PX-TR | ECS | CSM-7X | MHz Crystal | 11.0592MHz | ±30ppm | 20pF | -10℃~70℃ |
| ECS-270-18-5PX-F-TR | ECS | CSM-7X | MHz Crystal | 27MHz | ±30ppm | 18pF | -10℃~70℃ |
| ECS-41-20-5PX-TR | ECS | CSM-7X | MHz Crystal | 4.096MHz | ±30ppm | 20pF | -10℃~70℃ |
| ECS-80-32-5PX-TR | ECS | CSM-7X | MHz Crystal | 8MHz | ±30ppm | 32pF | -10℃~70℃ |
| ECS-73-20-5PX-TR | ECS | CSM-7X | MHz Crystal | 7.3728MHz | ±30ppm | 20pF | -10℃~70℃ |
| ECS-160-S-5PX-TR | ECS | CSM-7X | MHz Crystal | 16MHz | ±30ppm | Series | -10℃~70℃ |
| ECS-147.4-20-5PX-TR | ECS | CSM-7X | MHz Crystal | 14.7456MHz | ±30ppm | 20pF | -10℃~70℃ |
| ECS-98.3-20-5PX-TR | ECS | CSM-7X | MHz Crystal | 9.8304MHz | ±30ppm | 20pF | -10℃~70℃ |
| ECS-120-20-5PX-TR | ECS | CSM-7X | MHz Crystal | 12MHz | ±30ppm | 20pF | -10℃~70℃ |
| ECS-60-20-5PX-TR | ECS | CSM-7X | MHz Crystal | 6MHz | ±30ppm | 20pF | -10℃~70℃ |
| ECS-40-18-5PXEN-TR | ECS | CSM-7X | MHz Crystal | 4MHz | ±30ppm | 18pF | -40℃~85℃ |
| ECS-080-18-5PX-JES-TR | ECS | CSM-7X | MHz Crystal | 8MHz | ±20ppm | 18pF | -40℃~125℃ |
| ECS-200-16-5PX-TR | ECS谐振器 | CSM-7X | MHz Crystal | 20MHz | ±30ppm | 16pF | -10℃~70℃ |
| ECS-76.8-18-5PXEN-TR | ECS | CSM-7X | MHz Crystal | 7.68MHz | ±30ppm | 18pF | -40℃~85℃ |
| ECS-200-18-5PXEN-TR | ECS | CSM-7X | MHz Crystal | 20MHz | ±30ppm | 18pF | -40℃~85℃ |
| ECS-41-18-5PLX-AGN-TR | ECS | CSM-7X | MHz Crystal | 4.096MHz | ±25ppm | 18pF | -40℃~85℃ |
| ECS-250-18-5PX-CKM-TR | ECS | CSM-7X | MHz Crystal | 25MHz | ±10ppm | 18pF | -20℃~70℃ |
| ECS-240-18-5PXEN-TR | ECS | CSM-7X | MHz Crystal | 24MHz | ±30ppm | 18pF | -40℃~85℃ |
| ECS-160-18-5PXEN-TR | ECS | CSM-7X | MHz Crystal | 16MHz | ±30ppm | 18pF | -40℃~85℃ |
| ECS-110-18-5PXEN-TR | ECS | CSM-7X | MHz Crystal | 11MHz | ±30ppm | 18pF | -40℃~85℃ |
