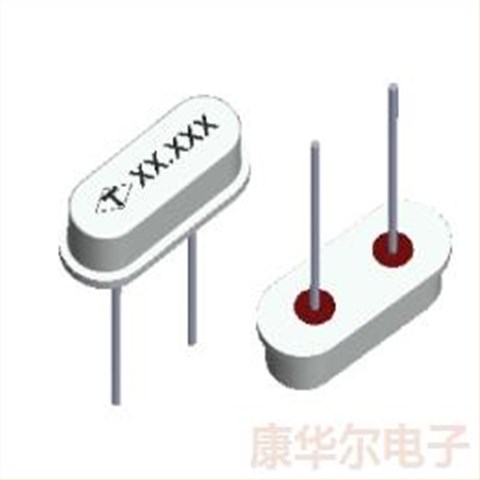

XIHEELAANF-11.059200,泰艺插件晶振,HC-49/US晶体,XI无源晶振,石英晶体谐振器
| 型号名称Model name： | XI | 品牌 brand ： | TAITIEN晶振 |

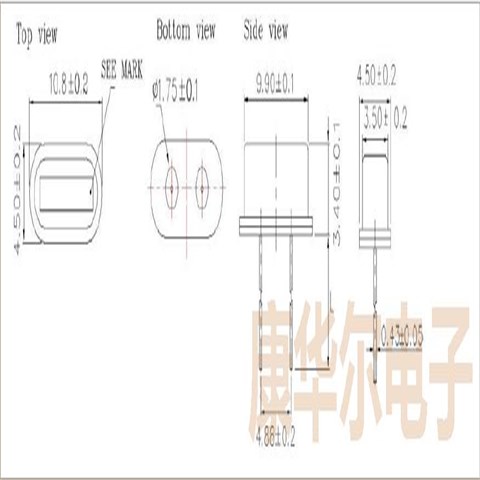

| 原厂型号Original model ： | XIHEELAANF-11.059200 | 尺寸size ： | 10.80 x 4.50mm |
| 产品类型Product type： | 进口插件晶振 | 高度 Package Height： | 3.50mm |
| 频率frequency ： | 11.0592MHz | 工作温度Operating Temperature ： | -40℃~85℃ |
| 频率公差Tolerance ： | ±30ppm | 等效串联电阻 ESR ： | 40 Ohms |
| 负载电容 Load capacitance ： | 20pF | 包装/类型Packaging / Type : | HC-49/US晶振 |
| 产地Origin： | 中国台湾 | 制造商Manufacturer ： | TAITIEN晶振 |
| 安装方式Installation ： | Through Hole | 最小包装数 MPQ ： | 1000 pcs |
XIHEELAANF-11.059200,泰艺插件晶振,HC-49/US晶体,XI无源晶振,石英晶体谐振器
| XDMCZLNDDD-0.032768 | TAITIEN晶振 | XD | 32.768K晶振 | ±20ppm | 12.5pF |
| XDMCZLNDMD-0.032768 | TAITIEN晶振 | XD | 32.768kHz | ±20ppm | 12.5pF |
| XDLCZLNDMD-0.032768 | TAITIEN晶振 | XD | 32.768kHz | ±20ppm | 6pF |
| XDOCZLNDMD-0.032768 | TAITIEN晶振 | XD | 32.768kHz | ±20ppm | 7pF |
| XDOCZLNDDD-0.032768 | TAITIEN晶振 | XD | 32.768kHz | ±20ppm | 7pF |
| XDBCZLNDMD-0.032768 | TAITIEN晶振 | XD | 32.768kHz | ±20ppm | 9pF |
| X8HCAKNHNF-10.000000 | TAITIEN晶振 | X8 | 10MHz | ±2ppm | 20pF |
| X8GEBGNHNF-16.384000 | TAITIEN晶振 | X8 | 16.384MHz | ±3ppm | 18pF |
| X7SPAHNHNF-10.000000 | TAITIEN晶振 | X7 | 10MHz | ±1.5ppm | Series |
| X5HGGJNINF-100.000000 | TAITIEN晶振 | X5 | 100MHz | ±5ppm | 20pF |
| X6SFEININF-100.000000 | TAITIEN晶振 | X6 | 100MHz | ±4ppm | Series |
| XJGPPCAANF-25.000000 | TAITIEN晶振 | XJ | 25MHz | ±15ppm | 18pF |
| XJDECCAANF-4.194304 | TAITIEN晶振 | XJ | 4.194304MHz | ±30ppm | 12pF |
| XIHEELAANF-11.059200 | TAITIEN晶振 | XI | 11.0592MHz | ±30ppm | 20pF |
| XIHEELAANF-16.000000 | TAITIEN晶振 | XI | 16MHz | ±30ppm | 20pF |
| XIHEELAANF-25.000000 | TAITIEN晶振 | XI | 25MHz | ±30ppm | 20pF |
| XIHEELAANF-4.000000 | TAITIEN晶振 | XI | 4MHz | ±30ppm | 20pF |
| XIHEELAANF-7.372800 | TAITIEN晶振 | XI | 7.3728MHz | ±30ppm | 20pF |
| XIHEELAANF-8.000000 | TAITIEN晶振 | XI | 8MHz | ±30ppm | 20pF |
| XJCBBIAANF-10.368000 | TAITIEN晶振 | XJ | 10.368MHz | ±10ppm | 10pF |
| XIHCELAANF-16.000000 | TAITIEN晶振 | XI | 16MHz | ±20ppm | 20pF |
| X2AEECNANF-24.000000 | TAITIEN晶振 | X2 | 24MHz | ±30ppm | 8pF |
| X2AGHINANF-48.000000 | TAITIEN晶振 | X2 | 48MHz | ±50ppm | 8pF |
| X2CGGCSANF-25.000000 | TAITIEN晶振 | X2 | 25MHz | ±50ppm | 10pF |
| X2CGGCSANF-30.000000 | TAITIEN晶振 | X2 | 30MHz | ±50ppm | 10pF |
| X2DCCCNANF-25.000000 | TAITIEN晶振 | X2 | 25MHz | ±20ppm | 12pF |
| X2DEECNANF-24.000000 | TAITIEN晶振 | X2 | 24MHz | ±30ppm | 12pF |
| X2DEECNANF-25.000000 | TAITIEN晶振 | X2 | 25MHz | ±30ppm | 12pF |
| X2FCCLNANF-16.000000 | TAITIEN晶振 | X2 | 16MHz | ±20ppm | 16pF |
| X2FCCLNANF-25.000000 | TAITIEN晶振 | X2 | 25MHz | ±20ppm | 16pF |
| X2GCELNANF-24.000000 | TAITIEN晶振 | X2 | 24MHz | ±20ppm | 18pF |
| X2GCELNANF-25.000000 | TAITIEN晶振 | X2 | 25MHz | ±20ppm | 18pF |
| X2GEECNANF-24.000000 | 石英晶体 | X2 | 24MHz | ±30ppm | 18pF |
| X2GEGLNANF-24.000000 | TAITIEN晶振 | X2 | 24MHz | ±30ppm | 18pF |
| X2GGGLNANF-12.000000 | TAITIEN晶振 | X2 | 12MHz | ±50ppm | 18pF |
| X2HCCCNANF-12.000000 | TAITIEN晶振 | X2 | 12MHz | ±20ppm | 20pF |
