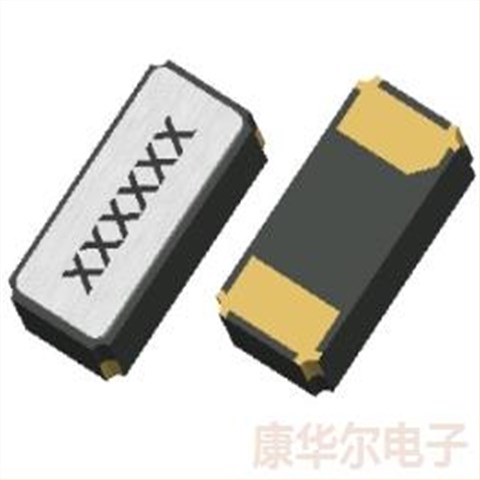

3215石英晶体,32.768K谐振器,音叉晶体,泰艺XD晶振,XDMCZLNDDD-0.032768
| 型号名称Model name： | XD | 品牌 brand ： | TAITIEN晶振 |

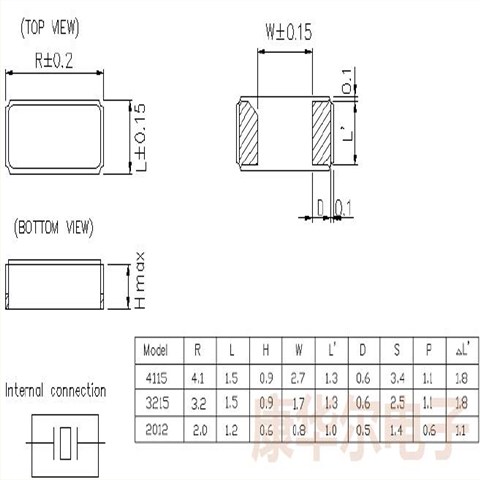

| 原厂型号Original model ： | XDMCZLNDDD-0.032768 | 尺寸size ： | 3215贴片晶振 |
| 产品类型Product type： | kHz Crystal | 高度 Package Height： | 0.90mm |
| 频率frequency ： | 32.768KHZ | 工作温度Operating Temperature ： | -40℃~85℃ |
| 频率公差Tolerance ： | ±20ppm | 等效串联电阻 ESR ： | 90 kOhms |
| 负载电容 Load capacitance ： | 12.5pF | 包装类型Packaging Type : | Tape/Reel |
| 产地Origin： | 中国台湾 | 制造商Manufacturer ： | TAITIEN晶振 |
| 安装方式Installation ： | Surface Mount | 最小包装数 MPQ ： | 3000 / reel |
3215石英晶体,32.768K谐振器,音叉晶体,泰艺XD晶振,XDMCZLNDDD-0.032768
| XDMCZLNDDD-0.032768 | TAITIEN晶振 | XD | 32.768kHz | ±20ppm | 12.5pF |
| XDMCZLNDMD-0.032768 | TAITIEN晶振 | XD | 32.768kHz | ±20ppm | 12.5pF |
| XDLCZLNDMD-0.032768 | TAITIEN晶振 | XD | 32.768kHz | ±20ppm | 6pF |
| XDOCZLNDMD-0.032768 | TAITIEN晶振 | XD | 32.768kHz | ±20ppm | 7pF |
| XDOCZLNDDD-0.032768 | TAITIEN晶振 | XD | 32.768kHz | ±20ppm | 7pF |
| XDBCZLNDMD-0.032768 | TAITIEN晶振 | XD | 32.768kHz | ±20ppm | 9pF |
| XJGPPCAANF-25.000000 | TAITIEN晶振 | XJ | 25MHz | ±15ppm | 18pF |
| XJDECCAANF-4.194304 | TAITIEN晶振 | XJ | 4.194304MHz | ±30ppm | 12pF |
| XIHEELAANF-11.059200 | TAITIEN晶振 | XI | 11.0592MHz | ±30ppm | 20pF |
| XIHEELAANF-16.000000 | TAITIEN晶振 | XI | 16MHz | ±30ppm | 20pF |
| XIHEELAANF-25.000000 | TAITIEN晶振 | XI | 25MHz | ±30ppm | 20pF |
| XIHEELAANF-4.000000 | TAITIEN晶振 | XI | 4MHz | ±30ppm | 20pF |
| XIHEELAANF-7.372800 | TAITIEN晶振 | XI | 7.3728MHz | ±30ppm | 20pF |
| XIHEELAANF-8.000000 | TAITIEN晶振 | XI | 8MHz | ±30ppm | 20pF |
| XJCBBIAANF-10.368000 | TAITIEN晶振 | XJ | 10.368MHz | ±10ppm | 10pF |
| XIHCELAANF-16.000000 | TAITIEN晶振 | XI | 16MHz | ±20ppm | 20pF |
| XSCEECNANF-8.000000 | TAITIEN晶振 | XS | 8MHz | ±30ppm | 10pF |
| XSCEGCNANF-10.000000 | TAITIEN晶振 | XS | 10MHz | ±30ppm | 10pF |
| XSCGGCNANF-24.576000 | TAITIEN晶振 | XS | 24.576MHz | ±50ppm | 10pF |
| XSDEECNANF-25.000000 | TAITIEN晶振 | XS | 25MHz | ±30ppm | 12pF |
| XSDEELNANF-12.000000 | TAITIEN晶振 | XS | 12MHz | ±30ppm | 12pF |
| XSDEELNANF-13.560000 | TAITIEN晶振 | XS | 13.56MHz | ±30ppm | 12pF |
| XSDEELNANF-25.000000 | TAITIEN晶振 | XS | 25MHz | ±30ppm | 12pF |
| XSDEGCNANF-16.000000 | TAITIEN晶振 | XS | 16MHz | ±30ppm | 12pF |
| XSFGGLNANF-20.000000 | TAITIEN晶振 | XS | 20MHz | ±50ppm | 16pF |
| XSGEECNANF-16.000000 | TAITIEN晶振 | XS | 16MHz | ±30ppm | 18pF |
| XSGEELNANF-25.000000 | TAITIEN晶振 | XS | 25MHz | ±30ppm | 18pF |
| XSGEGLNANF-13.000000 | TAITIEN晶振 | XS | 13MHz | ±30ppm | 18pF |
| XSHEECNANF-25.000000 | TAITIEN晶振 | XS | 25MHz | ±30ppm | 20pF |
| XSHEELNANF-25.000000 | TAITIEN晶振 | XS | 25MHz | ±30ppm | 20pF |
| XSHGGLNANF-11.059200 | TAITIEN晶振 | XS | 11.0592MHz | ±50ppm | 20pF |
| XSHGGLNANF-12.000000 | 32.768K音叉晶体 | XS | 12MHz | ±50ppm | 20pF |
| XSHGGLNANF-16.000000 | TAITIEN晶振 | XS | 16MHz | ±50ppm | 20pF |
| XSHGGLNANF-24.000000 | TAITIEN晶振 | XS | 24MHz | ±50ppm | 20pF |
| XSDEELAANF-12.000000 | TAITIEN晶振 | XS | 12MHz | ±30ppm | 12pF |
