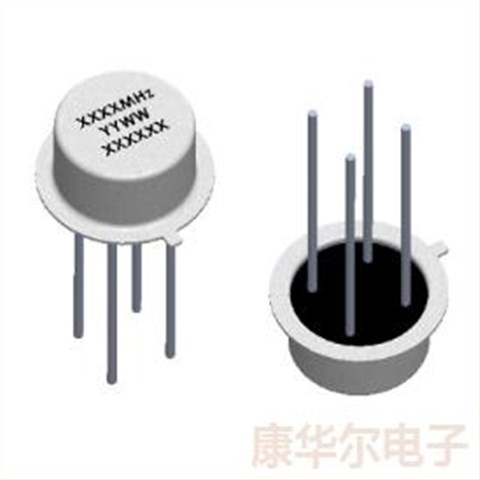

抗冲击晶振,X6SFEININF-100.000000,泰艺插件晶振,HC-35U晶振,X6石英晶振
| 型号名称Model name： | X6 | 品牌 brand ： | TAITIEN晶振 |

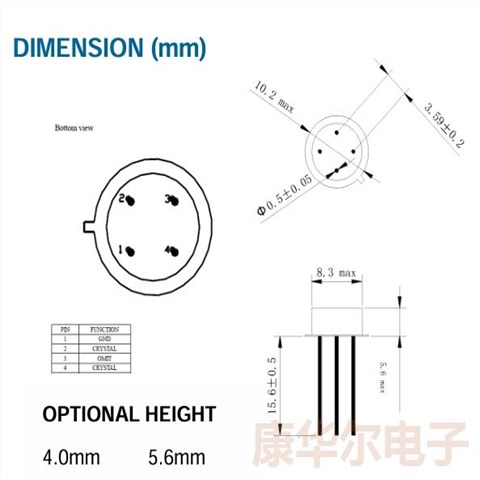

| 原厂型号Original model ： | X6SFEININF-100.000000 | 尺寸size ： | 10.20mm x 5.60mm |
| 产品类型Product type： | 石英晶体 | 高度 Package Height： | 5.60mm |
| 频率frequency ： | 100MHz | 工作温度Operating Temperature ： | -55℃~125℃ |
| 频率公差Tolerance ： | ±4ppm | 等效串联电阻 ESR ： | 120 Ohms |
| 负载电容 Load capacitance ： | Series | 包装/类型Packaging / Type : | HC-35U晶振 |
| 产地Origin： | 中国台湾 | 制造商Manufacturer ： | TAITIEN晶振 |
| 安装方式Installation ： | Surface Mount | 最小包装数 MPQ ： | 1000 pcs |
抗冲击晶振,X6SFEININF-100.000000,泰艺插件晶振,HC-35U晶振,X6石英晶振
| XXGEGLNANF-25.000000 | TAITIEN晶振 | XX | 25MHz | ±30ppm | 18pF |
| XXBBBCNANF-16.000000 | TAITIEN晶振 | XX | 16MHz | ±10ppm | 9pF |
| XXCCCLNANF-49.152000 | TAITIEN晶振 | XX | 49.152MHz | ±20ppm | 10pF |
| XDMCZLNDDD-0.032768 | TAITIEN晶振 | XD | 32.768K晶振 | ±20ppm | 12.5pF |
| XXCBPLNANF-25.000000 | TAITIEN晶振 | XX | 25MHz | ±10ppm | 10pF |
| XXHCCLNANF-25.000000 | TAITIEN晶振 | XX | 25MHz | ±20ppm | 20pF |
| X3AEELNANF-50.000000 | TAITIEN晶振 | X3 | 50MHz | ±30ppm | 8pF |
| XDMCZLNDMD-0.032768 | TAITIEN晶振 | XD | 32.768kHz | ±20ppm | 12.5pF |
| XYLEEJNANF-32.000000 | TAITIEN晶振 | XY | 32MHz | ±30ppm | 6pF |
| XXGGGINANF-25.000000 | TAITIEN晶振 | XX | 25MHz | ±50ppm | 18pF |
| XXEBCLNANF-40.000000 | TAITIEN晶振 | XX石英晶振 | 40MHz | ±10ppm | 15pF |
| XDLCZLNDMD-0.032768 | TAITIEN晶振 | XD | 32.768kHz | ±20ppm | 6pF |
| XDOCZLNDMD-0.032768 | TAITIEN晶振 | XD | 32.768kHz | ±20ppm | 7pF |
| XDOCZLNDDD-0.032768 | TAITIEN晶振 | XD | 32.768kHz | ±20ppm | 7pF |
| XDBCZLNDMD-0.032768 | TAITIEN晶振 | XD | 32.768kHz | ±20ppm | 9pF |
| X3ABBCNANF-32.000000 | TAITIEN晶振 | X3 | 32MHz | ±10ppm | 8pF |
| X3CBBCNANF-26.000000 | TAITIEN晶振 | X3 | 26MHz | ±10ppm | 10pF |
| X3LBBCNANF-32.000000 | TAITIEN晶振 | X3 | 32MHz | ±10ppm | 6pF |
| X3CBBCNANF-32.000000 | TAITIEN晶振 | X3 | 32MHz | ±10ppm | 10pF |
| X3ABBCNANF-26.000000 | TAITIEN晶振 | X3 | 26MHz | ±10ppm | 8pF |
| XZABBCNANF-32.000000 | TAITIEN晶振 | XZ | 32MHz | ±10ppm | 8pF |
| XZCBBCNANF-26.000000 | TAITIEN晶振 | XZ | 26MHz | ±10ppm | 10pF |
| XZABBCNANF-26.000000 | TAITIEN晶振 | XZ | 26MHz | ±10ppm | 8pF |
| XZCBBCNANF-32.000000 | TAITIEN晶振 | XZ | 32MHz | ±10ppm | 10pF |
| XYDBBCNANF-32.000000 | TAITIEN晶振 | XY | 32MHz | ±10ppm | 12pF |
| XYABBCNANF-32.000000 | TAITIEN晶振 | XY | 32MHz | ±10ppm | 8pF |
| XYCBBCNANF-32.000000 | TAITIEN晶振 | XY | 32MHz | ±10ppm | 10pF |
| XYABBCNANF-26.000000 | TAITIEN晶振 | XY | 26MHz | ±10ppm | 8pF |
| XYCBBCNANF-26.000000 | TAITIEN晶振 | XY | 26MHz | ±10ppm | 10pF |
| XXDCCCNANF-12.000000 | TAITIEN晶振 | XX | 12MHz | ±20ppm | 12pF |
| XYDBBCNANF-26.000000 | TAITIEN晶振 | XY | 26MHz | ±10ppm | 12pF |
| XXGPPLNANF-20.000000 | TAITIEN晶振 | XX | 20MHz | ±15ppm | 18pF |
| X3AEELNANF-26.000000 | TAITIEN晶振 | X3 | 26MHz | ±30ppm | 8pF |
| X3LEELNANF-30.000000 | TAITIEN晶振 | X3 | 30MHz | ±30ppm | 6pF |
| X3AEEJNANF-30.000000 | TAITIEN晶振 | X3 | 30MHz | ±30ppm | 8pF |
| X3LEECNANF-40.000000 | TAITIEN晶振 | X3 | 40MHz | ±30ppm | 6pF |
| X3LEELNANF-32.000000 | TAITIEN晶振 | X3 | 32MHz | ±30ppm | 6pF |
| X3LEEJNANF-40.000000 | TAITIEN晶振 | X3无源晶振 | 40MHz | ±30ppm | 6pF |
| X3AEEJNANF-50.000000 | TAITIEN晶振 | X3 | 50MHz | ±30ppm | 8pF |
| X3AEEJNANF-32.000000 | TAITIEN晶振 | X3 | 32MHz | ±30ppm | 8pF |
| X3AEELNANF-38.400000 | TAITIEN晶振 | X3 | 38.4MHz | ±30ppm | 8pF |
| X3LEEJNANF-50.000000 | TAITIEN晶振 | X3 | 50MHz | ±30ppm | 6pF |
| X3LEEJNANF-26.000000 | TAITIEN晶振 | X3 | 26MHz | ±30ppm | 6pF |
| XYAEEJNANF-27.000000 | TAITIEN晶振 | XY | 27MHz | ±30ppm | 8pF |
