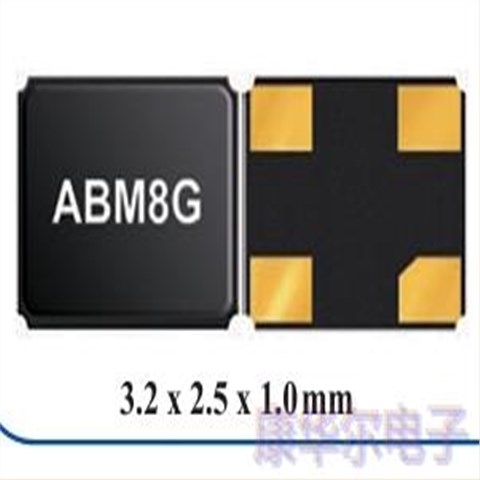

通信设备晶振,ABM8G晶体,Abracon谐振器,3225无源晶振ABM8G-25.000MHZ-18-D2Y-T
| 型号名称Model name： | ABM8G | 品牌 brand ： | ABRACON |

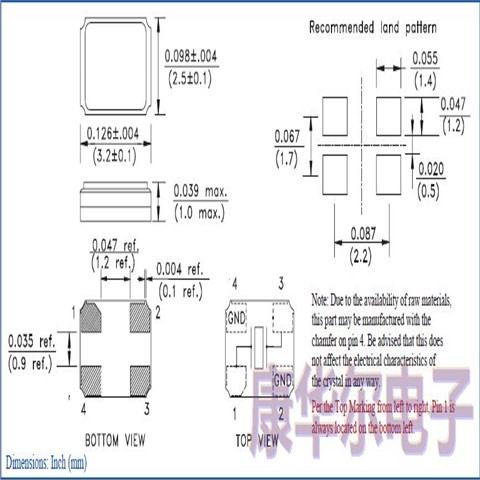

| 原厂型号Original model ： | ABM8G-25.000MHZ-18-D2Y-T | 尺寸size ： | 3.20mm x 2.50mm |
| 产品类型Product type： | 陶瓷晶振 | 高度 Package Height： | 1.00mm |
| 频率frequency ： | 25MHz | 工作温度Operating Temperature ： | -40~85℃ |
| 频率公差Tolerance ： | ±20ppm | 等效串联电阻 ESR ： | 60 Ohms |
| 负载电容 Load capacitance ： | 18pF | 包装类型Packaging Type : | Tape/Reel |
| 产地Origin： | 欧美晶振 | 制造商Manufacturer ： | Abracon晶体 |
| 安装方式Installation ： | Surface Mount | 最小包装数 MPQ ： | 3000 / reel |
通信设备晶振,ABM8G晶体,Abracon谐振器,3225无源晶振ABM8G-25.000MHZ-18-D2Y-T
| ABM8G-106-12.000MHZ-T | ABRACON | ABM8G | MHz Crystal | 12MHz | ±20ppm | 10pF |
| ABM8G-25.000MHZ-18-D2Y-T | ABRACON | ABM8G | MHz Crystal | 25MHz | ±20ppm | 18pF |
| ABM8G-24.000MHZ-12-B4Y-T | ABRACON | ABM8G | MHz Crystal | 24MHz | ±30ppm | 12pF |
| ABM8G-24.000MHZ-D4Y-T | ABRACON | ABM8G | MHz Crystal | 24MHz | ±30ppm | 10pF |
| ABM8G-12.000MHZ-D2Y-T | ABRACON | ABM8G | MHz Crystal | 12MHz | ±20ppm | 10pF |
| ABM8G-12.000MHZ-8-B2X-T | ABRACON | ABM8G | MHz Crystal | 12MHz | ±20ppm | 8pF |
| ABM8G-25.000MHZ-10-R50-B4Y-T | ABRACON | ABM8G | MHz Crystal | 25MHz | ±30ppm | 10pF |
| ABM8G-24.000MHZ-4Y-T | ABRACON | ABM8G | MHz Crystal | 24MHz | ±30ppm | 10pF |
| ABM8G-14.31818MHZ-D2Y-T | ABRACON | ABM8G | MHz Crystal | 14.31818MHz | ±20ppm | 10pF |
| ABM8G-30.000MHZ-B4Y-T | ABRACON | ABM8G | MHz Crystal | 30MHz | ±30ppm | 10pF |
| ABM8G-24.576MHZ-B4Y-T | ABRACON | ABM8G | MHz Crystal | 24.576MHz | ±30ppm | 10pF |
| ABM8G-40.000MHZ-B4Y-T | ABRACON | ABM8G | MHz Crystal | 40MHz | ±30ppm | 10pF |
| ABM8G-12.288MHZ-B4Y-T | ABRACON | ABM8G | MHz Crystal | 12.288MHz | ±30ppm | 10pF |
| ABM8G-12.000MHZ-18-D4W-T3 | ABRACON | ABM8G | MHz Crystal | 12MHz | ±30ppm | 18pF |
| ABM8G-48.000MHZ-4Y-T3 | ABRACON | ABM8G | MHz Crystal | 48MHz | ±30ppm | 10pF |
| ABM8G-22.1184MHZ-4Y-T3 | ABRACON | ABM8G | MHz Crystal | 22.1184MHz | ±30ppm | 10pF |
| ABM8G-40.000MHZ-4Y-T3 | Abracon | ABM8G | MHz Crystal | 40MHz | ±30ppm | 10pF |
| ABM8G-33.000MHZ-4Y-T3 | ABRACON | ABM8G | MHz Crystal | 33MHz | ±30ppm | 10pF |
| ABM8G-28.63636MHZ-B4Y-T | ABRACON | ABM8G | MHz Crystal | 28.63636MHz | ±30ppm | 10pF |
| ABM8G-13.560MHZ-B4Y-T | ABRACON | ABM8G | MHz Crystal | 13.56MHz | ±30ppm | 10pF |
| ABM8G-13.000MHZ-18-D2Y-T | ABRACON | ABM8G | MHz Crystal | 13MHz | ±20ppm | 18pF |
| ABM8G-18.432MHZ-18-D2Y-T | ABRACON | ABM8G | MHz Crystal | 18.432MHz | ±20ppm | 18pF |
| ABM8G-12.000MHZ-B4Y-T3 | ABRACON | ABM8G | MHz Crystal | 12MHz | ±30ppm | 10pF |
| ABM8G-16.384MHZ-12-B4Y-T | ABRACON | ABM8G | MHz Crystal | 16.384MHz | ±30ppm | 12pF |
| ABM8G-12.288MHZ-18-D2Y-T3 | ABRACON | ABM8G | MHz Crystal | 12.288MHz | ±20ppm | 18pF |
| ABM8G-24.000MHZ-18-D2Y-T3 | ABRACON | ABM8G | MHz Crystal | 24MHz | ±20ppm | 18pF |
| ABM8G-13.560MHZ-18-D2Y-T3 | ABRACON | ABM8G | 无源晶体 | 13.56MHz | ±20ppm | 18pF |
| ABM8G-16.384MHZ-18-D2Y-T3 | ABRACON | ABM8G | MHz Crystal | 16.384MHz | ±20ppm | 18pF |
| ABM8G-14.7456MHZ-18-D2Y-T3 | ABRACON | ABM8G | MHz Crystal | 14.7456MHz | ±20ppm | 18pF |
| ABM8G-14.31818MHZ-B4Y-T | ABRACON | ABM8G | MHz Crystal | 14.31818MHz | ±30ppm | 10pF |
| ABM8G-28.63636MHZ-18-D2Y-T | ABRACON | ABM8G | MHz Crystal | 28.63636MHz | ±20ppm | 18pF |
| ABM8G-40.000MHZ-18-D2Y-T | ABRACON | ABM8G | MHz Crystal | 40MHz | ±20ppm | 18pF |
| ABM8G-30.000MHZ-18-D2Y-T | ABRACON | ABM8G | MHz Crystal | 30MHz | ±20ppm | 18pF |
