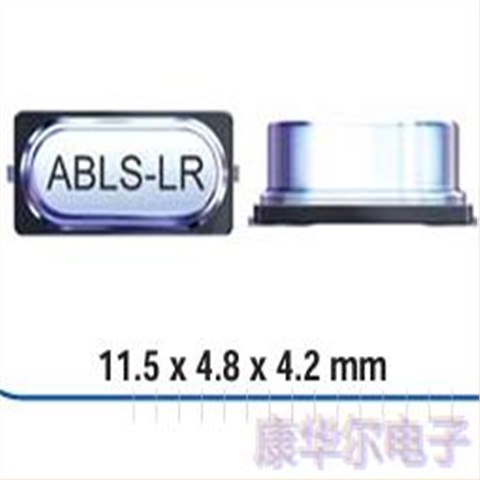

ABLS-LR-25.000MHZ-D2Y-T,HC-49/US晶振,Abracon贴片晶振,ABLS-LR晶体
| 型号名称Model name： | ABLS-LR | 品牌 brand ： | ABRACON |

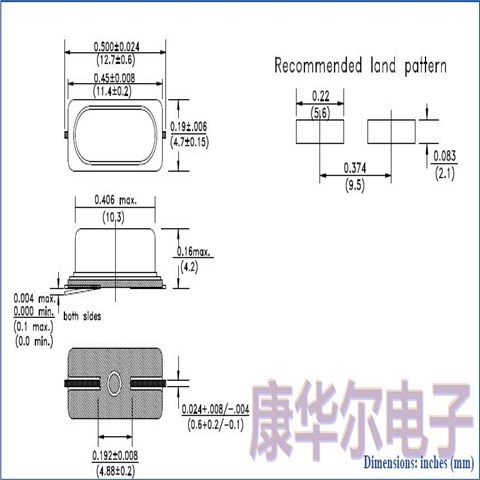

| 原厂型号Original model ： | ABLS-LR-25.000MHZ-D2Y-T | 尺寸size ： | 11.40mm x 4.70mm |
| 产品类型Product type： | MHz Crystal | 高度 Package Height： | 4.20mm |
| 频率frequency ： | 25MHz | 工作温度Operating Temperature ： | -40~85℃ |
| 频率公差Tolerance ： | ±20ppm | 等效串联电阻 ESR ： | 10 Ohms |
| 负载电容 Load capacitance ： | 18pF | 包装类型Packaging Type : | HC-49/US |
| 产地Origin： | 欧美晶振 | 制造商Manufacturer ： | Abracon晶体 |
| 安装方式Installation ： | Surface Mount | 最小包装数 MPQ ： | 1000 / reel |
ABLS-LR-25.000MHZ-D2Y-T,HC-49/US晶振,Abracon贴片晶振,ABLS-LR晶体
| ABLS-LR-24.000MHZ-B1G-T | ABRACON | ABLS-LR | MHz Crystal | 24MHz | ±10ppm | 18pF |
| ABLS-LR-12.288MHZ-T | ABRACON | ABLS-LR | MHz Crystal | 12.288MHz | ±50ppm | 18pF |
| ABLS-LR-8.000MHZ-T | ABRACON | ABLS-LR | MHz Crystal | 8MHz | ±50ppm | 18pF |
| ABLS-LR-7.3728MHZ-T | ABRACON | ABLS-LR | MHz Crystal | 7.3728MHz | ±50ppm | 18pF |
| ABLS-LR-12.000MHZ-T | ABRACON | ABLS-LR | MHz Crystal | 12MHz | ±50ppm | 18pF |
| ABLS-LR-3.6864MHZ-T | ABRACON | ABLS-LR | MHz Crystal | 3.6864MHz | ±50ppm | 18pF |
| ABLS-LR-11.0592MHZ-T | ABRACON | ABLS-LR | MHz Crystal | 11.0592MHz | ±50ppm | 18pF |
| ABLS-LR-6.000MHZ-T | ABRACON | ABLS-LR | MHz Crystal | 6MHz | ±50ppm | 18pF |
| ABLS-LR-25.000MHZ-D2Y-T | ABRACON | ABLS-LR | MHz Crystal | 25MHz | ±20ppm | 18pF |
| ABLS-LR-3.072MHZ-T | ABRACON | ABLS-LR | MHz Crystal | 3.072MHz | ±50ppm | 18pF |
| ABLS-LR-3.000MHZ-T | ABRACON | ABLS-LR | MHz Crystal | 3MHz | ±50ppm | 18pF |
| ABLS-LR-3.2768MHZ-T | ABRACON | ABLS-LR | MHz Crystal | 3.2768MHz | ±50ppm | 18pF |
| ABLS-LR-25.000MHZ-F-T | ABRACON | ABLS-LR | MHz Crystal | 25MHz | ±50ppm | 18pF |
| ABLS-LR-4.9152MHZ-T | ABRACON | ABLS-LR | MHz Crystal | 4.9152MHz | ±50ppm | 18pF |
| ABLS-LR-10.000MHZ-T | ABRACON | ABLS-LR | MHz Crystal | 10MHz | ±50ppm | 18pF |
| ABLS-LR-14.7456MHZ-T | ABRACON | ABLS-LR | MHz Crystal | 14.7456MHz | ±50ppm | 18pF |
| ABLS-LR-16.000MHZ-T | ABRACON | ABLS-LR | MHz Crystal | 16MHz | ±50ppm | 18pF |
| ABLS-LR-24.000MHZ-T | ABRACON | ABLS-LR | MHz Crystal | 24MHz | ±50ppm | 18pF |
| ABLS-LR-13.000MHZ-T | ABRACON | ABLS-LR | MHz Crystal | 13MHz | ±50ppm | 18pF |
| ABLS-LR-16.384MHZ-T | ABRACON | ABLS-LR | MHz Crystal | 16.384MHz | ±50ppm | 18pF |
| ABLS-LR-16.9344MHZ-T | ABRACON | ABLS-LR | MHz Crystal | 16.9344MHz | ±50ppm | 18pF |
| ABLS-LR-18.000MHZ-T | ABRACON | ABLS-LR | MHz Crystal | 18MHz | ±50ppm | 18pF |
| ABLS-LR-20.000MHZ-T | ABRACON | ABLS-LR | MHz Crystal | 20MHz | ±50ppm | 18pF |
| ABLS-LR-28.63636MHZ-F-T | ABRACON | ABLS-LR | MHz Crystal | 28.63636MHz | ±50ppm | 18pF |
| ABLS-LR-4.000MHZ-T | Abracon | ABLS-LR | MHz Crystal | 4MHz | ±50ppm | 18pF |
| ABLS-LR-9.8304MHZ-T | ABRACON | ABLS-LR | MHz Crystal | 9.8304MHz | ±50ppm | 18pF |
| ABLS-LR-3.579545MHZ-T | ABRACON | ABLS-LR | MHz Crystal | 3.579545MHz | ±50ppm | 18pF |
| ABLS-LR-4.194304MHZ-T | ABRACON | ABLS-LR | MHz Crystal | 4.194304MHz | ±50ppm | 18pF |
| ABLS-LR-4.433619MHZ-T | ABRACON | ABLS-LR | MHz Crystal | 4.433619MHz | ±50ppm | 18pF |
| ABLS-LR-4.500MHZ-T | ABRACON | ABLS-LR | MHz Crystal | 4.5MHz | ±50ppm | 18pF |
| ABLS-LR-5.000MHZ-T | ABRACON | ABLS-LR | MHz Crystal | 5MHz | ±50ppm | 18pF |
| ABLS-LR-6.144MHZ-T | ABRACON | ABLS-LR | MHz Crystal | 6.144MHz | ±50ppm | 18pF |
| ABLS-LR-6.7458MHZ-T | ABRACON | ABLS-LR | MHz Crystal | 6.7458MHz | ±50ppm | 18pF |
| ABLS-LR-9.216MHZ-T | ABRACON | ABLS-LR | MHz Crystal | 9.216MHz | ±50ppm | 18pF |
| ABLS-LR-10.240MHZ-T | ABRACON | ABLS-LR | MHz Crystal | 10.24MHz | ±50ppm | 18pF |
| ABLS-LR-13.500MHZ-T | ABRACON | ABLS-LR | MHz Crystal | 13.5MHz | ±50ppm | 18pF |
| ABLS-LR-14.31818MHZ-T | ABRACON | ABLS-LR | MHz Crystal | 14.31818MHz | ±50ppm | 18pF |
| ABLS-LR-15.000MHZ-T | ABRACON | ABLS-LR | MHz Crystal | 15MHz | ±50ppm | 18pF |
| ABLS-LR-15.360MHZ-T | ABRACON | ABLS-LR | MHz Crystal | 15.36MHz | ±50ppm | 18pF |
| ABLS-LR-18.432MHZ-T | ABRACON | ABLS-LR | MHz Crystal | 18.432MHz | ±50ppm | 18pF |
| ABLS-LR-19.6608MHZ-T | ABRACON | ABLS-LR | MHz Crystal | 19.6608MHz | ±50ppm | 18pF |
| ABLS-LR-24.576MHZ-F-T | ABRACON | ABLS-LR | 无源晶体 | 24.576MHz | ±50ppm | 18pF |
| ABLS-LR-27.000MHZ-F-T | ABRACON | ABLS-LR | MHz Crystal | 27MHz | ±50ppm | 18pF |
| ABLS-LR-30.000MHZ-T | ABRACON | ABLS-LR | MHz Crystal | 30MHz | ±50ppm | 18pF |
