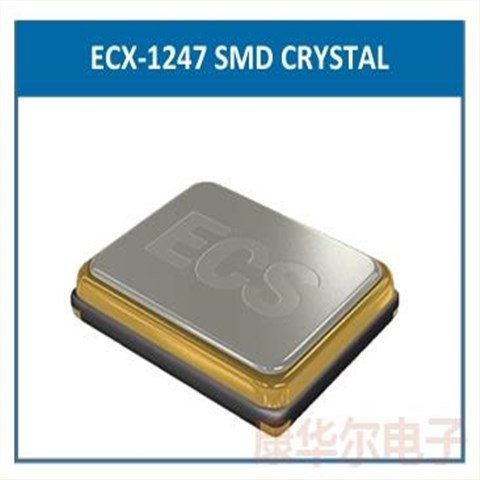

ECS无源晶振,ECS-480-8-47-JTN-TR,进口石英晶体,1612超小型晶振,ECX-1247晶体
| 型号名称Model name： | ECX-1247 | 品牌 brand ： | ECS晶振 |
| 原厂型号Original model ： | ECS-480-8-47-JTN-TR | 尺寸size ： | 1.60mm x 1.20mm |
| 产品类型Product type： | MHz Crystal | 高度 Package Height： | 0.35mm |
| 频率frequency ： | 48MHz | 工作温度Operating Temperature ： | -40℃~85℃ |
| 频率公差Tolerance ： | ±20ppm | 等效串联电阻 ESR ： | 80 Ohms |
| 负载电容 Load capacitance ： | 8pF | 包装/类型Packaging / Type : | Tape/Reel |
| 产地Origin： | 美国ECS晶体 | 制造商Manufacturer ： | 伊西斯 |
| 安装方式Installation ： | Surface Mount | 最小包装数 MPQ ： | 3000 pcs |
ECS无源晶振,ECS-480-8-47-JTN-TR,进口石英晶体,1612超小型晶振,ECX-1247晶体
| ECS-320-8-47-JTN-TR | ECS | ECX-1247 | MHz Crystal | 32MHz | ±20ppm | 8pF |
| ECS-240-8-47-JTN-TR | ECS | ECX-1247 | MHz Crystal | 24MHz | ±20ppm | 8pF |
| ECS-320-8-47B-7KM-TR | ECS | ECX-1247B | MHz Crystal | 32MHz | ±7ppm | 8pF |
| ECS-480-8-47-JTN-TR | ECS | ECX-1247 | MHz Crystal | 48MHz | ±20ppm | 8pF |
| ECS-320-8-47Q-CES-TR | ECS | ECX-1247Q | MHz Crystal | 32MHz | ±10ppm | 8pF |
| ECS-240-10-47Q-CES-TR | ECS | ECX-1247Q | MHz Crystal | 24MHz | ±10ppm | 10pF |
| ECS-480-8-47Q-JTN-TR | ECS | ECX-1247Q | MHz Crystal | 48MHz | ±20ppm | 8pF |
| ECS-271.2-10-47Q-ES-TR | ECS | ECX-1247Q | MHz Crystal | 27.12MHz | ±30ppm | 10pF |
| ECS-271.2-10-47B-JTN-TR | ECS | ECX-1247B | MHz Crystal | 27.12MHz | ±20ppm | 10pF |
| ECS-320-6-47B-CTN-TR | ECS | ECX-1247B | MHz Crystal | 32MHz | ±10ppm | 6pF |
| ECS-270-8-47Q-CES-TR | ECS | ECX-1247Q | MHz Crystal | 27MHz | ±10ppm | 8pF |
| ECS-480-8-47Q-CES-TR | ECS | ECX-1247Q | MHz Crystal | 48MHz | ±10ppm | 8pF |
| ECS-320-6-47Q-CTN-TR | ECS | ECX-1247Q | MHz Crystal | 32MHz | ±10ppm | 6pF |
| ECS-250-10-47Q-CES-TR | ECS | ECX-1247Q | MHz Crystal | 25MHz | ±10ppm | 10pF |
| ECS-320-CDX-2292 | ECS | ECX-1247 | MHz Crystal | 32MHz | ±10ppm | 10pF |
| ECS-320-8-47-CKM-TR3 | ECS | ECX-1247 | 进口石英晶体 | 32MHz | ±10ppm | 8pF |
| ECS-320-6-47B2-CTN-TR | ECS | ECX-1247B2 | MHz Crystal | 32MHz | ±10ppm | 6pF |
| ECS-320-8-47B2-CTN-TR | ECS | ECX-1247B2 | MHz Crystal | 32MHz | ±10ppm | 8pF |
| ECS-320-9-47Q-CKM-TR | ECS | ECX-1247Q | MHz Crystal | 32MHz | ±10ppm | 9pF |
| ECS-240-6-47B-CKM-TR | ECS | ECX-1247B | MHz Crystal | 24MHz | ±10ppm | 6pF |
| ECS-320-8-47-CKM-TR | ECS | ECX-1247 | MHz Crystal | 32MHz | ±10ppm | 8pF |
| ECS-260-9-47-CKM-TR | ECS | ECX-1247 | MHz Crystal | 26MHz | ±10ppm | 9pF |
| ECS-260-8-47-CKM-TR | ECS | ECX-1247 | MHz Crystal | 26MHz | ±10ppm | 8pF |
| ECS-384-10-47-CKM-TR | ECS | ECX-1247 | MHz Crystal | 38.4MHz | ±10ppm | 10pF |
| ECS-240-8-47-CKM-TR | ECS | ECX-1247 | MHz Crystal | 24MHz | ±10ppm | 8pF |
| ECS-240-8-47B-7KM-TR | ECS | ECX-1247B | MHz Crystal | 24MHz | ±7ppm | 8pF |
| ECS-240-10-47-CKM-TR | ECS | ECX-1247 | MHz Crystal | 24MHz | ±10ppm | 10pF |
| ECS-260-8-47Q-CES-TR | ECS | ECX-1247Q | MHz Crystal | 26MHz | ±10ppm | 8pF |
| ECS-400-8-47Q-CES-TR | ECS | ECX-1247Q | MHz Crystal | 40MHz | ±10ppm | 8pF |
| ECS-500-8-47Q-CES-TR | ECS | ECX-1247Q | MHz Crystal | 50MHz | ±10ppm | 8pF |
| ECS-400-8-47-JTN-TR | ECS | ECX-1247 | MHz Crystal | 40MHz | ±20ppm | 8pF |
| ECS-260-8-47-JTM-TR | ECS | ECX-1247 | MHz Crystal | 26MHz | ±20ppm | 8pF |
| ECS-260-8-47Q-CKM-TR | ECS | ECX-1247Q | MHz Crystal | 26MHz | ±10ppm | 8pF |
| ECS-300-8-47Q-CES-TR | ECS | ECX-1247Q | MHz Crystal | 30MHz | ±10ppm | 8pF |
| ECS-520-8-47-CKM-TR | ECS | ECX-1247 | 1612贴片晶体 | 52MHz | ±10ppm | 8pF |
| ECS-260-8-47-JTN-TR | ECS | ECX-1247 | MHz Crystal | 26MHz | ±20ppm | 8pF |
| ECS-320-8-47B-JTM-TR | ECS | ECX-1247B | MHz Crystal | 32MHz | ±20ppm | 8pF |
