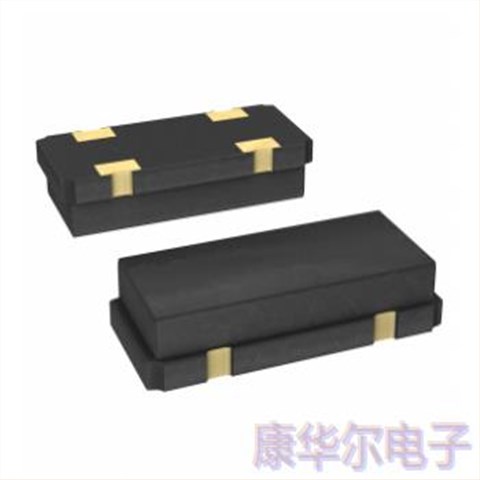

ABC2-10.000MHZ-D4Q-T,陶瓷晶振,Abracon晶体,ABC2贴片晶振,进口黑色面晶体
| 型号名称Model name： | ABC2 | 品牌 brand ： | ABRACON |

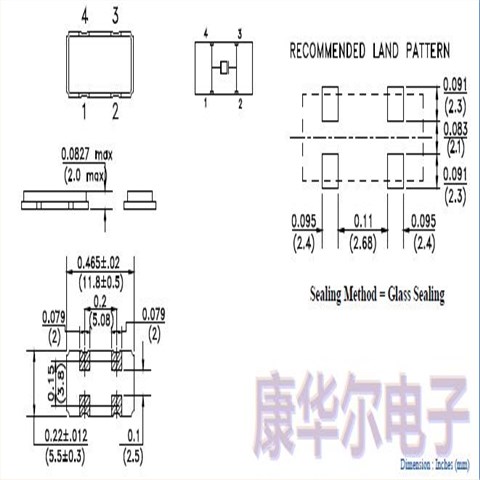

| 原厂型号Original model ： | ABC2-10.000MHZ-D4Q-T | 尺寸size ： | 11.80mm x 5.50mm |
| 产品类型Product type： | 贴片晶振 | 高度 Package Height： | 2.00mm |
| 频率frequency ： | 10MHz | 工作温度Operating Temperature ： | -40℃~85℃ |
| 频率公差Tolerance ： | ±50ppm | 等效串联电阻 ESR ： | 45 Ohms |
| 负载电容 Load capacitance ： | 18pF | 包装类型Packaging Type : | 4-SMD |
| 产地Origin： | 美国 | 制造商Manufacturer ： | Abracon |
| 安装方式Installation ： | Surface Mount | 最小包装数 MPQ ： | 1000 / reel |
ABC2-10.000MHZ-D4Q-T,陶瓷晶振,Abracon晶体,ABC2贴片晶振,进口黑色面晶体
| ABC2-20.000MHZ-D4Q-T | ABRACON | ABC2 | MHz Crystal | 20MHz | ±50ppm | 18pF |
| ABC2-10.000MHZ-D4Q-T | ABRACON | ABC2 | MHz Crystal | 10MHz | ±50ppm | 18pF |
| ABC2-4.096MHZ-D4Q-T | ABRACON | ABC2 | MHz Crystal | 4.096MHz | ±50ppm | 18pF |
| ABC2-4.000MHZ-S-D4Q-T | ABRACON | ABC2 | MHz Crystal | 4MHz | ±50ppm | Series |
| ABC2-12.000MHZ-D4Q-T | ABRACON | ABC2 | MHz Crystal | 12MHz | ±50ppm | 18pF |
| ABC2-20.000MHZ-20-D4Q-T | ABRACON | ABC2 | MHz Crystal | 20MHz | ±50ppm | 20pF |
| ABC2-7.3728MHZ-D4Q-T | ABRACON | ABC2 | MHz Crystal | 7.3728MHz | ±50ppm | 18pF |
| ABC2-14.7456MHZ-D4Q-T | ABRACON | ABC2 | MHz Crystal | 14.7456MHz | ±50ppm | 18pF |
| ABC2-6.000MHZ-D4Q-T | ABRACON | ABC2 | MHz Crystal | 6MHz | ±50ppm | 18pF |
| ABC2-8.000MHZ-20-D4Q-T | ABRACON | ABC2 | MHz Crystal | 8MHz | ±50ppm | 20pF |
| ABC2-3.6864MHZ-20-D4Q-T | ABRACON | ABC2 | MHz Crystal | 3.6864MHz | ±50ppm | 20pF |
| ABC2-10.000MHZ-D4Y-T | ABRACON | ABC2 | MHz Crystal | 10MHz | ±30ppm | 18pF |
| ABC2-20.480MHZ-BY-T | ABRACON | ABC2 | MHz Crystal | 20.48MHz | ±50ppm | 18pF |
| ABC2-16.000MHZ-4-T | ABRACON | ABC2 | MHz Crystal | 16MHz | ±30ppm | 18pF |
| ABC2-4.000MHZ-4-T | ABRACON | ABC2 | MHz Crystal | 4MHz | ±30ppm | 18pF |
| ABC2-6.000MHZ-4-T | ABRACON | ABC2 | MHz Crystal | 6MHz | ±30ppm | 18pF |
| ABC2-8.000MHZ-4-T | ABRACON | ABC2 | MHz Crystal | 8MHz | ±30ppm | 18pF |
| ABC2-7.3728MHZ-4-T | ABRACON | ABC2 | MHz Crystal | 7.3728MHz | ±30ppm | 18pF |
| ABC2-12.000MHZ-4-T | ABRACON | ABC2 | MHz Crystal | 12MHz | ±30ppm | 18pF |
| ABC2-4.000MHZ-D-T | ABRACON | ABC2 | MHz Crystal | 4MHz | ±50ppm | 18pF |
| ABC2-3.6864MHZ-D4Z-T | ABRACON | ABC2 | MHz Crystal | 3.6864MHz | ±30ppm | 18pF |
| ABC2-7.3728MHZ-D4Y-T | ABRACON | ABC2 | MHz Crystal | 7.3728MHz | ±30ppm | 18pF |
| ABC2-3.579545MHZ-4-T | ABRACON | ABC2 | MHz Crystal | 3.579545MHz | ±30ppm | 18pF |
| ABC2-4.096MHZ-4-T | ABRACON | ABC2 | MHz Crystal | 4.096MHz | ±30ppm | 18pF |
| ABC2-7.680MHZ-4-T | ABRACON | ABC2 | MHz Crystal | 7.68MHz | ±30ppm | 18pF |
| ABC2-9.8304MHZ-4-T | ABRACON | ABC2 | MHz Crystal | 9.8304MHz | ±30ppm | 18pF |
| ABC2-10.000MHZ-4-T | ABRACON | ABC2 | MHz Crystal | 10MHz | ±30ppm | 18pF |
| ABC2-20.000MHZ-4-T | ABRACON | ABC2 | MHz Crystal | 20MHz | ±30ppm | 18pF |
| ABC2-11.0592MHZ-4-T | ABRACON | ABC2 | MHz Crystal | 11.0592MHz | ±30ppm | 18pF |
| ABC2-14.7456MHZ-4-T | ABRACON | ABC2 | MHz Crystal | 14.7456MHz | ±30ppm | 18pF |
| ABC2-4.000MHZ-20-D4Q-T | ABRACON | ABC2 | MHz Crystal | 4MHz | ±50ppm | 20pF |
| ABC2-3.6864MHZ-4-T | ABRACON | ABC2 | MHz Crystal | 3.6864MHz | ±30ppm | 18pF |
| ABC2-4.9152MHZ-4-T | ABRACON | ABC2 | MHz Crystal | 4.9152MHz | ±30ppm | 18pF |
| ABC2-25.000MHZ-4-T | ABRACON | ABC2 | MHz Crystal | 25MHz | ±30ppm | 18pF |
| ABC2-5.000MHZ-4-T | ABRACON | ABC2 | MHz Crystal | 5MHz | ±30ppm | 18pF |
| ABC2-6.144MHZ-4-T | ABRACON | ABC2 | MHz Crystal | 6.144MHz | ±30ppm | 18pF |
| ABC2-11.2896MHZ-4-T | ABRACON | ABC2 | MHz Crystal | 11.2896MHz | ±30ppm | 18pF |
| ABC2-12.288MHZ-4-T | ABRACON | ABC2 | MHz Crystal | 12.288MHz | ±30ppm | 18pF |
| ABC2-14.31818MHZ-4-T | ABRACON | ABC2 | MHz Crystal | 14.31818MHz | ±30ppm | 18pF |
| ABC2-15.000MHZ-4-T | ABRACON | ABC2 | MHz Crystal | 15MHz | ±30ppm | 18pF |
| ABC2-15.360MHZ-4-T | ABRACON | ABC2 | MHz Crystal | 15.36MHz | ±30ppm | 18pF |
| ABC2-16.666MHZ-4-T | ABRACON | ABC2 | MHz Crystal | 16.666MHz | ±30ppm | 18pF |
| ABC2-18.432MHZ-4-T | ABRACON | ABC2 | 进口无源晶振 | 18.432MHz | ±30ppm | 18pF |
| ABC2-19.440MHZ-4-T | ABRACON | ABC2 | MHz Crystal | 19.44MHz | ±30ppm | 18pF |
| ABC2-20.480MHZ-4-T | ABRACON | ABC2 | MHz Crystal | 20.48MHz | ±30ppm | 18pF |
| ABC2-22.1184MHZ-4-T | ABRACON | ABC2 | MHz Crystal | 22.1184MHz | ±30ppm | 18pF |
| ABC2-24.000MHZ-4-T | ABRACON | ABC2 | MHz Crystal | 24MHz | ±30ppm | 18pF |
| ABC2-24.576MHZ-4-T | ABRACON | ABC2 | MHz Crystal | 24.576MHz | ±30ppm | 18pF |
| ABC2-14.7456MHZ-D4Y-T | ABRACON | ABC2 | MHz Crystal | 14.7456MHz | ±30ppm | 18pF |
