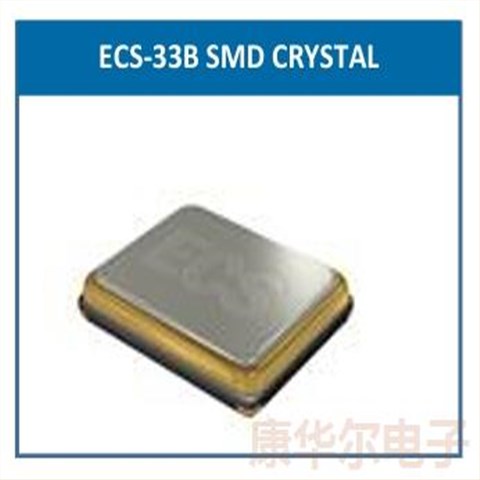

ECS-33B晶体,3225谐振器,ECS-250-8-33B-CKM-TR,伊西斯谐振器,进口无源贴片
| 型号名称Model name： | ECS-33B | 品牌 brand ： | ECS晶振 |
| 原厂型号Original model ： | ECS-250-8-33B-CKM-TR | 尺寸size ： | 3.20mm x 2.50mm |
| 产品类型Product type： | MHz Crystal | 高度 Package Height： | 0.80mm |
| 频率frequency ： | 25MHz | 工作温度Operating Temperature ： | -20℃~70℃ |
| 频率公差Tolerance ： | ±10ppm | 等效串联电阻 ESR ： | 40 Ohms |
| 负载电容 Load capacitance ： | 8pF | 包装/类型Packaging / Type : | Tape/Reel |
| 产地Origin： | 美国 | 制造商Manufacturer ： | 进口晶振伊西斯 |
| 安装方式Installation ： | Surface Mount | 最小包装数 MPQ ： | 3000 pcs |
ECS-33B晶体,3225谐振器,ECS-250-8-33B-CKM-TR,伊西斯谐振器,进口无源贴片
| ECS-240-9-33B-CWN-TR | ECS | ECS-33B | MHz Crystal | 24MHz | ±10ppm | 9pF |
| ECS-250-8-33B-CKM-TR | ECS | ECS-33B | MHz Crystal | 25MHz | ±10ppm | 8pF |
| ECS-250-10-33B-CWN-TR | ECS | ECS-33B | MHz Crystal | 25MHz | ±10ppm | 10pF |
| ECS-160-9-33B-CWN-TR | ECS | ECS-33B | MHz Crystal | 16MHz | ±10ppm | 9pF |
| ECS-250-18-33B-CKY-TR | ECS | ECS-33B | MHz Crystal | 25MHz | ±10ppm | 18pF |
| ECS-120-10-33B-CKM-TR | ECS | ECS-33B | MHz Crystal | 12MHz | ±10ppm | 10pF |
| ECS-160-9-33B-CTP-TR | ECS | ECS-33B | MHz Crystal | 16MHz | ±10ppm | 9pF |
| ECS-240-18-33B-CHN-TR | ECS | ECS-33B | MHz Crystal | 24MHz | ±10ppm | 18pF |
| ECS-160-8-33B-CTN-TR | ECS | ECS-33B | MHz Crystal | 16MHz | ±10ppm | 8pF |
| ECS-160-9-33B-CKY-TR | ECS | ECS-33B | MHz Crystal | 16MHz | ±10ppm | 9pF |
| ECS-120-12-33B-CWY-TR | ECS | ECS-33B | MHz Crystal | 12MHz | ±10ppm | 12pF |
| ECS-160-10-33B-CKM-TR | ECS | ECS-33B | MHz Crystal | 16MHz | ±10ppm | 10pF |
| ECS-120-8-33B-CHN-TR | ECS | ECS-33B | MHz Crystal | 12MHz | ±10ppm | 8pF |
| ECS-250-10-33B-CKM-TR | ECS | ECS-33B | MHz Crystal | 25MHz | ±10ppm | 10pF |
| ECS-160-16-33B-CKM-TR | ECS | ECS-33B | MHz Crystal | 16MHz | ±10ppm | 16pF |
| ECS-480-8-33B-CWY-TR | ECS | ECS-33B | MHz Crystal | 48MHz | ±10ppm | 8pF |
| ECS-250-8-33B-CHP-TR3 | ECS | ECS-33B | MHz Crystal | 25MHz | ±10ppm | 8pF |
| ECS-160-9-33B-CKM-TR | ECS | ECS-33B | MHz Crystal | 16MHz | ±10ppm | 9pF |
| ECS-400-15-33B-CTN-TR | ECS | ECS-33B | MHz Crystal | 40MHz | ±10ppm | 15pF |
| ECS-250-18-33B-JGN-TR | ECS | ECS-33B | MHz Crystal | 25MHz | ±20ppm | 18pF |
| ECS-240-9-33B-CTP-TR | ECS | ECS-33B | MHz Crystal | 24MHz | ±10ppm | 9pF |
| ECS-300-10-33B-CKM-TR | ECS | ECS-33B | MHz Crystal | 30MHz | ±10ppm | 10pF |
| ECS-240-10-33B-CKY-TR3 | ECS | ECS-33B | MHz Crystal | 24MHz | ±10ppm | 10pF |
| ECS-250-10-33B-CKM-TR3 | ECS | ECS-33B | MHz Crystal | 25MHz | ±10ppm | 10pF |
| ECS-271.2-10-33B-CKM-TR3 | ECS | ECS-33B | MHz Crystal | 27.12MHz | ±10ppm | 10pF |
| ECS-320-6-33B-CTN-TR3 | ECS | ECS-33B | MHz Crystal | 32MHz | ±10ppm | 6pF |
| ECS-120-10-33B-CKM-TR3 | ECS | ECS-33B | MHz Crystal | 12MHz | ±10ppm | 10pF |
| ECS-320-16-33B-CKM-TR | ECS | ECS-33B | MHz Crystal | 32MHz | ±10ppm | 16pF |
| ECS-480-10-33B-CKM-TR | ECS | ECS-33B | MHz Crystal | 48MHz | ±10ppm | 10pF |
| ECS-480-8-33B-CWY-TR3 | ECS | ECS-33B | MHz Crystal | 48MHz | ±10ppm | 8pF |
| ECS-250-8-33B-CTN-TR | ECS | ECS-33B | MHz Crystal | 25MHz | ±10ppm | 8pF |
| ECS-240-8-33B-CWN-TR | ECS | ECS-33B | 3225无源晶振 | 24MHz | ±10ppm | 8pF |
| ECS-160-10-33B-CKM-TR3 | ECS | ECS-33B | MHz Crystal | 16MHz | ±10ppm | 10pF |
| ECS-384-10-33B-CKY-TR3 | ECS | ECS-33B | MHz Crystal | 38.4MHz | ±10ppm | 10pF |
| ECS-240-18-33B-CHN-TR3 | ECS | ECS-33B | MHz Crystal | 24MHz | ±10ppm | 18pF |
| ECS-250-10-33B-CWN-TR3 | ECS | ECS-33B | MHz Crystal | 25MHz | ±10ppm | 10pF |
| ECS-480-8-33B-CWN-TR3 | ECS | ECS-33B | MHz Crystal | 48MHz | ±10ppm | 8pF |
| ECS-240-9-33B-CWN-TR3 | ECS | ECS-33B | MHz Crystal | 24MHz | ±10ppm | 9pF |
| ECS-240-18-33B-CWN-TR3 | ECS | ECS-33B | MHz Crystal | 24MHz | ±10ppm | 18pF |
| ECS-250-18-33B-CKY-TR3 | ECS | ECS-33B | MHz Crystal | 25MHz | ±10ppm | 18pF |
| ECS-400-15-33B-CTN-TR3 | ECS | ECS-33B | MHz Crystal | 40MHz | ±10ppm | 15pF |
