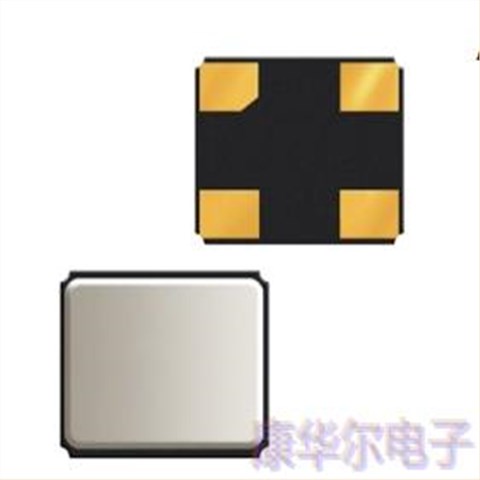

ABM11W-27.1200MHZ-6-D1X-T3,进口ABM11W晶振,美国ABRACON晶振,2016无源晶振
| 型号名称Model name： | ABM11W | 品牌 brand ： | ABRACON |

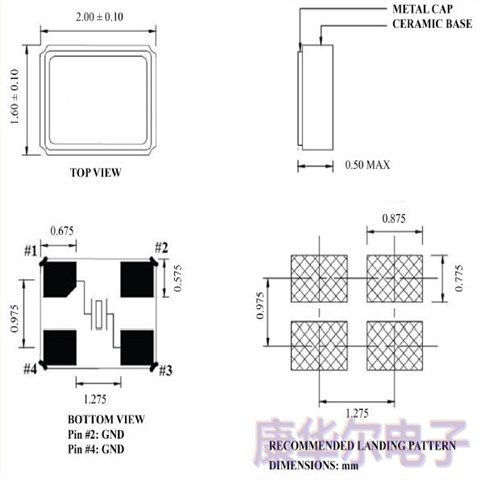

| 原厂型号Original model ： | ABM11W-27.1200MHZ-6-D1X-T3 | 尺寸size ： | 2.00mm x 1.60mm |
| 产品类型Product type： | 2016贴片晶振 | 高度 Package Height： | 0.50m |
| 频率frequency ： | 27.12MHz | 工作温度Operating Temperature ： | -40~85℃ |
| 频率公差Tolerance ： | ±10ppm | 等效串联电阻 ESR ： | 50 Ohms |
| 负载电容 Load capacitance ： | 6pF | 包装类型Packaging Type : | Tape/Reel |
| 产地Origin： | 欧美 | 制造商Manufacturer ： | Abracon晶体 |
| 安装方式Installation ： | Surface Mount | 最小包装数 MPQ ： | 3000 / reel |
ABM11W-27.1200MHZ-6-D1X-T3,进口ABM11W晶振,美国ABRACON晶振,2016无源晶振
| ABM11W-26.0000MHZ-4-K1Z-T3 | ABRACON | ABM11W | MHz Crystal | 26MHz | ±10ppm | 4pF |
| ABM11W-27.1200MHZ-7-B1U-T3 | ABRACON | ABM11W | MHz Crystal | 27.12MHz | ±10ppm | 7pF |
| ABM11W-27.1200MHZ-6-D1X-T3 | ABRACON | ABM11W | MHz Crystal | 27.12MHz | ±10ppm | 6pF |
| ABM11W-24.0000MHZ-8-K1Z-T3 | ABRACON | ABM11W | MHz Crystal | 24MHz | ±10ppm | 8pF |
| ABM11W-16.0000MHZ-6-B1U-T3 | ABRACON | ABM11W | MHz Crystal | 16MHz | ±10ppm | 6pF |
| ABM11W-24.0000MHZ-7-K1Z-T3 | ABRACON | ABM11W | MHz Crystal | 24MHz | ±10ppm | 7pF |
| ABM11W-20.0000MHZ-8-D1X-T3 | ABRACON | ABM11W | MHz Crystal | 20MHz | ±10ppm | 8pF |
| ABM11W-27.1200MHZ-6-B1U-T3 | ABRACON | ABM11W | MHz Crystal | 27.12MHz | ±10ppm | 6pF |
| ABM11W-16.0000MHZ-7-B1U-T3 | ABRACON | ABM11W | MHz Crystal | 16MHz | ±10ppm | 7pF |
| ABM11W-30.0000MHZ-7-B1U-T3 | ABRACON | ABM11W | MHz Crystal | 30MHz | ±10ppm | 7pF |
| ABM11W-27.1200MHZ-7-D1X-T3 | ABRACON | ABM11W | MHz Crystal | 27.12MHz | ±10ppm | 7pF |
| ABM11W-32.0000MHZ-8-J1Z-T3 | ABRACON | ABM11W | MHz Crystal | 32MHz | ±10ppm | 8pF |
| ABM11W-50.0000MHZ-8-R50-D3Y-T3 | ABRACON | ABM11W | MHz Crystal | 50MHz | ±25ppm | 8pF |
| ABM11W-16.0000MHZ-8-R100-N1G-T3 | ABRACON | ABM11W | MHz Crystal | 16MHz | ±10ppm | 8pF |
| ABM11W-25.0000MHZ-6-R80-D2X-T3 | ABRACON | ABM11W | MHz Crystal | 25MHz | ±20ppm | 6pF |
| ABM11W-24.0000MHZ-6-R80-D2X-T3 | ABRACON | ABM11W | MHz Crystal | 24MHz | ±20ppm | 6pF |
| ABM11W-32.0000MHZ-6-R60-D2X-T3 | ABRACON | ABM11W | MHz Crystal | 32MHz | ±20ppm | 6pF |
| ABM11W-26.0000MHZ-8-R60-B1U-T3 | ABRACON | ABM11W | MHz Crystal | 26MHz | ±10ppm | 8pF |
| ABM11W-40.0000MHZ-8-B1U-T3 | ABRACON | ABM11W | MHz Crystal | 40MHz | ±10ppm | 8pF |
| ABM11W-25.0000MHZ-8-K1Z-T3 | ABRACON | ABM11W | MHz Crystal | 25MHz | ±10ppm | 8pF |
| ABM11W-38.4000MHZ-7-D1X-T3 | ABRACON | ABM11W | MHz Crystal | 38.4MHz | ±10ppm | 7pF |
| ABM11W-32.0000MHZ-6-B1U-T3 | ABRACON | ABM11W | MHz Crystal | 32MHz | ±10ppm | 6pF |
| ABM11W-27.0000MHZ-6-B1U-T3 | ABRACON | ABM11W | MHz Crystal | 27MHz | ±10ppm | 6pF |
| ABM11W-27.0000MHZ-6-D1X-T3 | ABRACON | ABM11W | MHz Crystal | 27MHz | ±10ppm | 6pF |
| ABM11W-20.0000MHZ-6-B1U-T3 | ABRACON | ABM11W | MHz Crystal | 20MHz | ±10ppm | 6pF |
| ABM11W-40.0000MHZ-7-D1X-T3 | ABRACON | ABM11W | MHz Crystal | 40MHz | ±10ppm | 7pF |
| ABM11W-19.2000MHZ-6-D1X-T3 | ABRACON | ABM11W | MHz Crystal | 19.2MHz | ±10ppm | 6pF |
| ABM11W-40.0000MHZ-7-B1U-T3 | ABRACON | ABM11W | MHz Crystal | 40MHz | ±10ppm | 7pF |
| ABM11W-20.0000MHZ-6-D1X-T3 | ABRACON | ABM11W | MHz Crystal | 20MHz | ±10ppm | 6pF |
| ABM11W-20.0000MHZ-8-B1U-T3 | ABRACON | ABM11W | MHz Crystal | 20MHz | ±10ppm | 8pF |
| ABM11W-24.0000MHZ-6-B1U-T3 | ABRACON | ABM11W | MHz Crystal | 24MHz | ±10ppm | 6pF |
| ABM11W-16.0000MHZ-8-B1U-T3 | ABRACON | ABM11W | 无源晶体 | 16MHz | ±10ppm | 8pF |
| ABM11W-48.0000MHZ-8-D1X-T3 | ABRACON | ABM11W | MHz Crystal | 48MHz | ±10ppm | 8pF |
