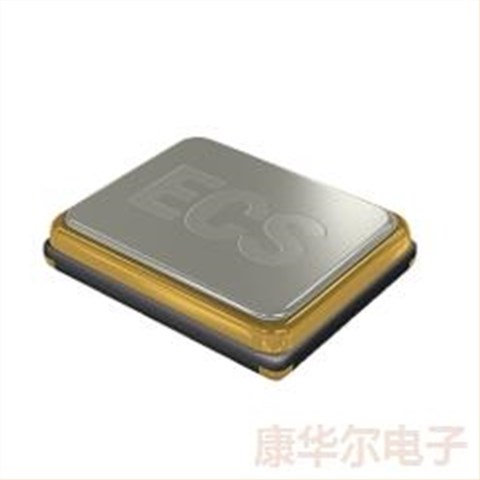

ECS-384-CDX-1983,2016进口晶振,美国ECS晶体,ECS-CDX晶振,耐高温晶振
| 型号名称Model name： | ECS-CDX | 品牌 brand ： | ECS晶振 |

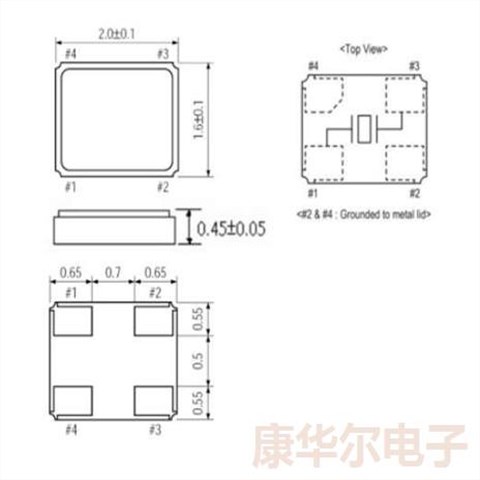

| 原厂型号Original model ： | ECS-384-CDX-1983 | 尺寸size ： | 2.00mm x 1.60mm |
| 产品类型Product type： | MHz Crystal | 高度 Package Height： | 0.50mm |
| 频率frequency ： | 38.4MHz | 工作温度Operating Temperature ： | -40℃~125℃ |
| 频率公差Tolerance ： | ±10ppm | 等效串联电阻 ESR ： | 40 Ohms |
| 负载电容 Load capacitance ： | 10pF | 包装/类型Packaging / Type : | Tape/Reel |
| 产地Origin： | 美国 | 制造商Manufacturer ： | 伊西斯宽温晶振 |
| 安装方式Installation ： | Surface Mount | 最小包装数 MPQ ： | 3000 pcs |
ECS-384-CDX-1983,2016进口晶振,美国ECS晶体,ECS-CDX晶振,耐高温晶振
| ECX-.327-CDX-1293 | ECS | ECS-CDX | kHz Crystal | 32.768kHz | ±5ppm | 12.5pF |
| ECS-.327-CDX-1128 | ECS | ECS-CDX | kHz Crystal | 32.768K晶振 | ±20ppm | 6pF |
| ECS-320-8-48B-CKY-TR | ECS | ECX-1048B | MHz Crystal | 32MHz | ±10ppm | 8pF |
| ECS-500-CDX-2166 | ECS | ECS-CDX | MHz Crystal | 50MHz | ±7ppm | 19pF |
| ECS-500-CDX-2240 | ECS | ECS-CDX | MHz Crystal | 50MHz | ±7ppm | 19pF |
| ECS-320-CDX-2374 | ECS | ECX-1048B | MHz Crystal | 32MHz | ±10ppm | 8pF |
| ECS-384-8-48-CKY-TR | ECS | ECX-1048 | MHz Crystal | 38.4MHz | ±10ppm | 8pF |
| ECS-374-8-48-CKY-TR | ECS | ECX-1048 | MHz Crystal | 37.4MHz | ±10ppm | 8pF |
| ECS-480-CDX-2301 | ECS | ECS-CDX | MHz Crystal | 48MHz | ±10ppm | 8pF |
| ECS-320-18-9X-F | ECS | ECS-3X9X | MHz Crystal | 32MHz | ±50ppm | 18pF |
| ECS-480-10-48-CKY-TR | ECS | ECX-1048 | MHz Crystal | 48MHz | ±10ppm | 10pF |
| ECS-110.5-18-9X | ECS | ECS-3X9X | MHz Crystal | 11.0592MHz | ±50ppm | 18pF |
| ECS-480-10-48B-CKY-TR | ECS | ECX-1048B | MHz Crystal | 48MHz | ±10ppm | 10pF |
| ECS-320-7-48B-JTM-TR5 | ECS | ECX-1048B | MHz Crystal | 32MHz | ±20ppm | 7pF |
| ECS-320-CDX-2094 | ECS | ECS-CDX | MHz Crystal | 32MHz | ±10ppm | 10pF |
| ECS-120-18-9X | ECS | ECS-3X9X | MHz Crystal | 12MHz | ±50ppm | 18pF |
| ECS-160-18-9X | ECS | ECS-3X9X | MHz Crystal | 16MHz | ±50ppm | 18pF |
| ECS-147.4-18-9X | ECS | ECS-3X9X | 2016无源晶振 | 14.7456MHz | ±50ppm | 18pF |
| ECS-200-18-9X | ECS | ECS-3X9X | MHz Crystal | 20MHz | ±50ppm | 18pF |
| ECS-320-10-48-CKY-TR | ECS | ECX-1048 | MHz Crystal | 32MHz | ±10ppm | 10pF |
| ECS-250-18-9X | ECS | ECS-3X9X | MHz Crystal | 25MHz | ±50ppm | 18pF |
| ECS-100-18-9X | ECS | ECS-3X9X | MHz Crystal | 10MHz | ±50ppm | 18pF |
| ECS-320-10-48B-CKY-TR | ECS | ECX-1048B | MHz Crystal | 32MHz | ±10ppm | 10pF |
| ECS-196.6-18-9X | ECS | ECS-3X9X | MHz Crystal | 19.6608MHz | ±50ppm | 18pF |
| ECS-390-CDX-1932 | ECS | ECS-CDX | MHz Crystal | 39MHz | ±8ppm | 10pF |
| ECS-143-18-9X | ECS | ECS-3X9X | MHz Crystal | 14.31818MHz | ±50ppm | 18pF |
| ECS-390-CDX-1932-TR3 | ECS | ECS-CDX | MHz Crystal | 39MHz | ±8ppm | 10pF |
| ECS-384-CDX-1983-TR3 | ECS | ECS-CDX | MHz Crystal | 38.4MHz | ±10ppm | 10pF |
| ECS-384-CDX-1983 | ECS | ECS-CDX | MHz Crystal | 38.4MHz | ±10ppm | 10pF |
| ECS-270-18-9X | ECS | ECS-3X9X | MHz Crystal | 27MHz | ±50ppm | 18pF |
| ECS-184-18-9X | ECS | ECS-3X9X | MHz Crystal | 18.432MHz | ±50ppm | 18pF |
| ECS-327-18-9X-F | ECS | ECS-3X9X | MHz Crystal | 32.768MHz | ±50ppm | 18pF |
ECS-384-CDX-1983,2016进口晶振,美国ECS晶体,ECS-CDX晶振,耐高温晶振
