NT2016SA-16.384MHz-NSC5318A,日本NDK晶振,TCXO振荡器,2016温补晶振
| 规格 | 符号 | 值 | 单位 | |||
| 额定频率范围 | fnom | 12 ≦ F < 26 | 26 ≦ F < 32 | 32 ≦ F ≦ 40 | 41 ≦ F ≦ 52 | MHz |

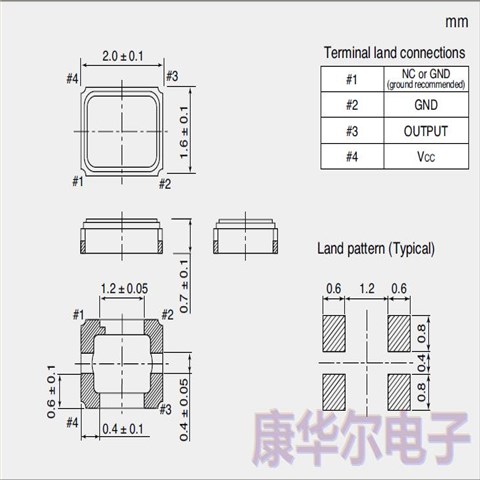

| 尺寸大小 (L×W×H) | - | 2.0×1.6×0.8 | mm | |||
| 电源电压 | VCC | +1.8 (Supports DC+1.7 to +3.3) | V | |||
| 输出规格 | - | Clipped Sine Wave | - | |||
| 输出负载条件 | - | 10 kΩ//10 pF | - | |||
| 消耗电流 | ICC | Max. 1.5 | Max. 1.5 | Max. 1.7 | Max. 2.0 | mA |
| 储存温度范围 | Tstr | -40 to +85 | ℃ | |||
| 工作温度范围 | Topr | -30 to +85 | ℃ | |||
| 电源电压变动的频率特性 | Δf/f | Max. ±0.2 | ppm | |||
| 负载变动的频率特性 | Δf/f | Max. ±0.2 | ppm | |||
| 频率允许偏差 | Δf/fnom | Max. ±2.0 | ppm | |||
| 频率温度特性 | Δf/f | Max. ±0.5 | ppm | |||
| 老化率 | Δf/f | Max. ±1.0 | ppm/year | |||
| 输出电压 | - | Min. 0.8 | Vp-p | |||
| 规格料号 | - | NSC5318A | NSC5318B | NSC5318C | NSC5318D | - |
NT2016SA-16.384MHz-NSC5318A,日本NDK晶振,TCXO振荡器,2016温补晶振
| NDK晶振型号 | 频率[MHz] | 规格编号 | 尺寸(LxW)[mm] | 输出规格 | 工作温度[℃] | 电压[V] | 频率容差[ppm] |
| NT1612SA | 26 | NSC5332A | 1.6×1.2 | Clipped Sine | -30~+85 | 1.8 | ±0.5 |
| NT1612SA | 52 | NSC5332B | 1.6×1.2 | Clipped Sine | -30~+85 | 1.8 | ±0.5 |
| NT1612SA | 26 | NSC5358A | 1.6×1.2 | Clipped Sine | -30~+85 | 1.8 | ±2.0 |
| NT1612SA | 52 | NSC5358B | 1.6×1.2 | Clipped Sine | -30~+85 | 1.8 | ±2.0 |
| NT2016SA | 16.368 | NSC5318A | 2.0×1.6 | Clipped Sine | -30~+85 | 1.8 | ±0.5 |
| NT2016SA | 16.369 | NSC5318A | 2.0×1.6 | Clipped Sine | -30~+85 | 1.8 | ±0.5 |
| NT2016SA | 16.384 | NSC5318A | 2.0×1.6 | Clipped Sine | -30~+85 | 1.8 | ±0.5 |
| NT2016SA | 19.2 | NSC5318A | 2.0×1.6 | Clipped Sine | -30~+85 | 1.8 | ±0.5 |
| NT2016SA | 20 | NSC5318A | 2.0×1.6 | Clipped Sine | -30~+85 | 1.8 | ±0.5 |
| NT2016SA | 25 | NSC5318A | 2.0×1.6 | Clipped Sine | -30~+85 | 1.8 | ±0.5 |
| NT2016SA | 26 | NSC5318B | 2.0×1.6 | Clipped Sine | -30~+85 | 1.8 | ±0.5 |
| NT2016SA | 32 | NSC5318C | 2.0×1.6 | Clipped Sine | -30~+85 | 1.8 | ±0.5 |
| NT2016SA | 38.4 | NSC5318C | 2.0×1.6 | Clipped Sine | -30~+85 | 1.8 | ±0.5 |
| NT2016SA | 40 | NSC5318C | 2.0×1.6 | Clipped Sine | -30~+85 | 1.8 | ±0.5 |
| NT2016SA | 48 | NSC5318D | 2.0×1.6 | Clipped Sine | -30~+85 | 1.8 | ±0.5 |
| NT2016SA | 50 | NSC5318D | 2.0×1.6 | Clipped Sine | -30~+85 | 1.8 | ±0.5 |
| NT2016SA | 52 | NSC5318D | 2.0×1.6 | Clipped Sine | -30~+85 | 1.8 | ±0.5 |
| NT2016SA | 16.368 | NSC5352A | 2.0×1.6 | Clipped Sine | -30~+85 | 1.8 | ±2.0 |
| NT2016SA | 16.369 | NSC5352A | 2.0×1.6 | Clipped Sine | -30~+85 | 1.8 | ±2.0 |
| NT2016SA | 16.384 | NSC5352A | 2.0×1.6 | Clipped Sine | -30~+85 | 1.8 | ±2.0 |
| NT2016SA | 19.2 | NSC5352A | 2.0×1.6 | Clipped Sine | -30~+85 | 1.8 | ±2.0 |
| NT2016SA | 20 | NSC5352A | 2.0×1.6 | Clipped Sine | -30~+85 | 1.8 | ±2.0 |
| NT2016SA | 25 | NSC5352A | 2.0×1.6 | Clipped Sine | -30~+85 | 1.8 | ±2.0 |
| NT2016SA | 26 | NSC5352B | 2.0×1.6 | Clipped Sine | -30~+85 | 1.8 | ±2.0 |
| NT2016SA | 32 | NSC5352C | 2.0×1.6 | Clipped Sine | -30~+85 | 1.8 | ±2.0 |
| NT2016SA | 38.4 | NSC5352C | 2.0×1.6 | Clipped Sine | -30~+85 | 1.8 | ±2.0 |
| NT2016SA | 40 | NSC5352C | 2.0×1.6 | Clipped Sine | -30~+85 | 1.8 | ±2.0 |
| NT2016SA | 48 | NSC5352D | 2.0×1.6 | Clipped Sine | -30~+85 | 1.8 | ±2.0 |
| NT2016SA | 50 | NSC5352D | 2.0×1.6 | Clipped Sine | -30~+85 | 1.8 | ±2.0 |
| NT2016SA | 52 | NSC5352D | 2.0×1.6 | Clipped Sine | -30~+85 | 1.8 | ±2.0 |
| NT2016SA | 16.368 | NSC5353A | 2.0×1.6 | Clipped Sine | -30~+85 | 1.8 | ±0.5 |
| NT2016SA | 16.369 | NSC5353A | 2.0×1.6 | Clipped Sine | -30~+85 | 1.8 | ±0.5 |
| NT2016SA | 16.384 | NSC5353A | 2.0×1.6 | Clipped Sine | -30~+85 | 1.8 | ±0.5 |
| NT2016SA | 19.2 | NSC5353A | 2.0×1.6 | Clipped Sine | -30~+85 | 1.8 | ±0.5 |
| NT2016SA | 20 | NSC5353A | 2.0×1.6 | Clipped Sine | -30~+85 | 1.8 | ±0.5 |
| NT2016SA | 25 | NSC5353A | 2.0×1.6 | Clipped Sine | -30~+85 | 1.8 | ±0.5 |
| NT2016SA | 26 | NSC5353B | 2.0×1.6 | Clipped Sine | -30~+85 | 1.8 | ±0.5 |
| NT2016SA | 32 | NSC5353C | 2.0×1.6 | Clipped Sine | -30~+85 | 1.8 | ±0.5 |
| NT2016SA | 38.4 | NSC5353C | 2.0×1.6 | Clipped Sine | -30~+85 | 1.8 | ±0.5 |
| NT2016SA | 40 | NSC5353C | 2.0×1.6 | Clipped Sine | -30~+85 | 1.8 | ±0.5 |
| NT2016SA | 48 | NSC5353D | 2.0×1.6 | Clipped Sine | -30~+85 | 1.8 | ±0.5 |
| NT2016SA | 50 | NSC5353D | 2.0×1.6 | Clipped Sine | -30~+85 | 1.8 | ±0.5 |
| NT2016SA | 52 | NSC5353D | 2.0×1.6 | Clipped Sine | -30~+85 | 1.8 | ±0.5 |
| NT2016SA | 16.368 | NSC5354A | 2.0×1.6 | Clipped Sine | -30~+85 | 1.8 | ±2.0 |
| NT2016SA | 16.369 | NSC5354A | 2.0×1.6 | Clipped Sine | -30~+85 | 1.8 | ±2.0 |
| NT2016SA | 16.384 | NSC5354A | 2.0×1.6 | Clipped Sine | -30~+85 | 1.8 | ±2.0 |
| NT2016SA | 19.2 | NSC5354A | 2.0×1.6 | Clipped Sine | -30~+85 | 1.8 | ±2.0 |
| NT2016SA | 20 | NSC5354A | 2.0×1.6 | Clipped Sine | -30~+85 | 1.8 | ±2.0 |
| NT2016SA | 25 | NSC5354A | 2.0×1.6 | Clipped Sine | -30~+85 | 1.8 | ±2.0 |
| NT2016SA | 26 | NSC5354B | 2.0×1.6 | Clipped Sine | -30~+85 | 1.8 | ±2.0 |
| NT2016SA | 32 | NSC5354C | 2.0×1.6 | Clipped Sine | -30~+85 | 1.8 | ±2.0 |
| NT2016SA | 38.4 | NSC5354C | 2.0×1.6 | Clipped Sine | -30~+85 | 1.8 | ±2.0 |
| NT2016SA | 40 | NSC5354C | 2.0×1.6 | Clipped Sine | -30~+85 | 1.8 | ±2.0 |
| NT2016SA | 48 | NSC5354D | 2.0×1.6 | Clipped Sine | -30~+85 | 1.8 | ±2.0 |
| NT2016SA | 50 | NSC5354D | 2.0×1.6 | Clipped Sine | -30~+85 | 1.8 | ±2.0 |
| NT2016SA | 52 | NSC5354D | 2.0×1.6 | Clipped Sine | -30~+85 | 1.8 | ±2.0 |
| NT2016SB | 19.2 | NSC5323A | 2.0×1.6 | Clipped Sine | -30~+85 | 1.8 | ±2.0 |
| NT2016SB | 20 | NSC5323A | 2.0×1.6 | Clipped Sine | -30~+85 | 1.8 | ±2.0 |
| NT2016SB | 25.6 | NSC5323A | 2.0×1.6 | Clipped Sine | -30~+85 | 1.8 | ±2.0 |
| NT2016SB | 26 | NSC5323A | 2.0×1.6 | Clipped Sine | -30~+85 | 1.8 | ±2.0 |
| NT2016SB | 32 | NSC5323A | 2.0×1.6 | Clipped Sine | -30~+85 | 1.8 | ±2.0 |
| NT2016SB | 38.4 | NSC5323A | 2.0×1.6 | Clipped Sine | -30~+85 | 1.8 | ±2.0 |
| NT2016SB | 36 | NSC5323A | 2.0×1.6 | Clipped Sine | -30~+85 | 1.8 | ±2.0 |
| NT2016SB | 48 | NSC5323A | 2.0×1.6 | Clipped Sine | -30~+85 | 1.8 | ±2.0 |
| NT2016SB | 40 | NSC5323A | 2.0×1.6 | Clipped Sine | -30~+85 | 1.8 | ±2.0 |
| NT2016SB | 52 | NSC5323A | 2.0×1.6 | Clipped Sine | -30~+85 | 1.8 | ±2.0 |
| NT2016SE | 16.368 | NSC5350B | 2.0×1.6 | Clipped Sine | -40~+105 | 1.8 | ±0.5 |
| NT2016SE | 16.369 | NSC5350B | 2.0×1.6 | Clipped Sine | -40~+105 | 1.8 | ±0.5 |
| NT2016SE | 26 | NSC5350B | 2.0×1.6 | Clipped Sine | -40~+105 | 1.8 | ±0.5 |
| NT2016SE | 32 | NSC5350C | 2.0×1.6 | Clipped Sine | -40~+105 | 1.8 | ±0.5 |
| NT2016SE | 40 | NSC5350C | 2.0×1.6 | Clipped Sine | -40~+105 | 1.8 | ±0.5 |
| NT2016SE | 48 | NSC5350C | 2.0×1.6 | Clipped Sine | -40~+105 | 1.8 | ±0.5 |
| NT2016SE | 50 | NSC5350C | 2.0×1.6 | Clipped Sine | -40~+105 | 1.8 | ±0.5 |
| NT2016SE | 52 | NSC5350C | 2.0×1.6 | Clipped Sine | -40~+105 | 1.8 | ±0.5 |
| NT2016SE | 16.368 | NSC5363A | 2.0×1.6 | Clipped Sine | -40~+105 | 1.8 | ±2.0 |
| NT2016SE | 16.369 | NSC5363A | 2.0×1.6 | Clipped Sine | -40~+105 | 1.8 | ±2.0 |
| NT2016SE | 16.384 | NSC5363A | 2.0×1.6 | Clipped Sine | -40~+105 | 1.8 | ±2.0 |
| NT2016SE | 19.2 | NSC5363A | 2.0×1.6 | Clipped Sine | -40~+105 | 1.8 | ±2.0 |
| NT2016SE | 20 | NSC5363A | 2.0×1.6 | Clipped Sine | -40~+105 | 1.8 | ±2.0 |
| NT2016SE | 25 | NSC5363A | 2.0×1.6 | Clipped Sine | -40~+105 | 1.8 | ±2.0 |
| NT2016SE | 26 | NSC5363B | 2.0×1.6 | Clipped Sine | -40~+105 | 1.8 | ±2.0 |
| NT2016SE | 32 | NSC5363C | 2.0×1.6 | Clipped Sine | -40~+105 | 1.8 | ±2.0 |
| NT2016SE | 38.4 | NSC5363C | 2.0×1.6 | Clipped Sine | -40~+105 | 1.8 | ±2.0 |
| NT2016SE | 40 | NSC5363C | 2.0×1.6 | Clipped Sine | -40~+105 | 1.8 | ±2.0 |
