VCXO压控晶振,日本NDK振荡器,7050石英贴片,导航设备晶振,NH7050SA-12.288MHz-NSA3458A
| 规格 | 符号 | 值 | 单位 |
| 额定频率范围 | fnom | 11 to 40 | MHz |

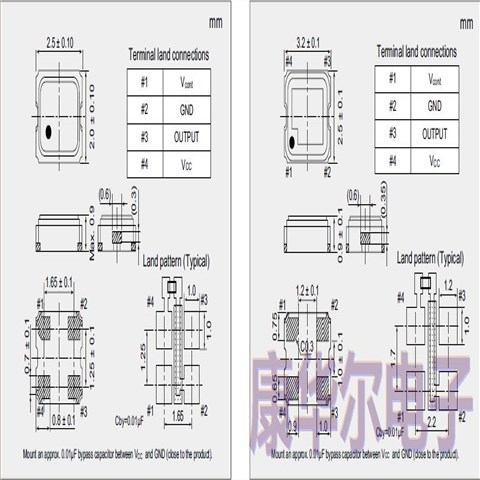

| 尺寸大小 (L×W×H) | - | 2.5×2.0×0.9 | mm |
| 电源电压 | VCC | 3.3 | V |
| 消耗电流 | ICC | Max. 6 | mA |
| 输出规格 | - | CMOS | - |
| 输出负载条件 | - | Max. 15 | pF |
| 保存温度范围 | Tstr | -55 to +125 | ℃ |
| 工作温度范围 | Topr | -40 to +85 | ℃ |
| 综合频率允许偏差 | Δf/fnom | Max. ±50 | ppm |
| 频率可变范围 / 控制电压 | Vcont | Min. ±100 / +1.65 ±1.65 V | ppm |
| 频率变化极性 | - | 正极性 | - |
| 波形对称 | - | 45 to 55 | % |
| 起振时间 | tsu | Max. 5 | ms |
|
相位噪声 ( Frequency=30.72MHz )
[ 1kHz Offset ]
|
L(f) | Typ.-136 | dBc/Hz |
|
相位噪声 ( Frequency=30.72MHz
[ 100kHz Offset ]
|
L(f) | Typ.-156 | dBc/Hz |
| 规格料号 | - | NSA3458A | - |
VCXO压控晶振,日本NDK振荡器,7050石英贴片,导航设备晶振,NH7050SA-12.288MHz-NSA3458A
| NDK晶振 | 频率[MHz] | 尺寸(LxW)[mm] | 输出方式 | 工作温度[℃] | 电压[V] |
| NV2520SA | 12.288 | 2.5x2.0 | CMOS | -40~+85 | +3.3 ± 0.33 |
| NV2520SA | 16.384 | 2.5x2.0 | CMOS | -40~+85 | +3.3 ± 0.33 |
| NV2520SA | 20 | 2.5x2.0 | CMOS | -40~+85 | +3.3 ± 0.33 |
| NV2520SA | 24.576 | 2.5x2.0 | CMOS | -40~+85 | +3.3 ± 0.33 |
| NV2520SA | 25 | 2.5x2.0 | CMOS | -40~+85 | +3.3 ± 0.33 |
| NV2520SA | 27 | 2.5x2.0 | CMOS | -40~+85 | +3.3 ± 0.33 |
| NV5032SC | 122.88 | 5.0x3.2 | LVPECL | -40~+85 | +3.3 ± 0.165 |
| NV5032SC | 122.88 | 5.0x3.2 | LVPECL | -40~+105 | +3.3 ± 0.165 |
| NV5032SK,SL,SM,SN | 15~2100 | 5.0x3.2 | LVPECL | -40~+85 | 1.8 |
| NV5032SK,SL,SM,SN | 15~2100 | 5.0x3.2 | LVPECL | -40~+85 | 1.8 |
| NV5032SK,SL,SM,SN | 15~2100 | 5.0x3.2 | LVPECL | -40~+85 | 1.8 |
| NV5032SK,SL,SM,SN | 15~2100 | 5.0x3.2 | LVPECL | -40~+85 | 2.5 |
| NV5032SK,SL,SM,SN | 15~2100 | 5.0x3.2 | LVPECL | -40~+85 | 2.5 |
| NV5032SK,SL,SM,SN | 15~2100 | 5.0x3.2 | LVPECL | -40~+85 | 2.5 |
| NV5032SK,SL,SM,SN | 15~2100 | 5.0x3.2 | LVPECL | -40~+85 | 3.3 |
| NV5032SK,SL,SM,SN | 15~2100 | 5.0x3.2 | LVPECL | -40~+85 | 3.3 |
| NV5032SK,SL,SM,SN | 15~2100 | 5.0x3.2 | LVPECL | -40~+85 | 3.3 |
| NV5032SK,SL,SM,SN | 15~2100 | 5.0x3.2 | LVDS | -40~+85 | 1.8 |
| NV5032SK,SL,SM,SN | 15~2100 | 5.0x3.2 | LVDS | -40~+85 | 1.8 |
| NV5032SK,SL,SM,SN | 15~2100 | 5.0x3.2 | LVDS | -40~+85 | 1.8 |
| NV5032SK,SL,SM,SN | 15~2100 | 5.0x3.2 | LVDS | -40~+85 | 2.5 |
| NV5032SK,SL,SM,SN | 15~2100 | 5.0x3.2 | LVDS | -40~+85 | 2.5 |
| NV5032SK,SL,SM,SN | 15~2100 | 5.0x3.2 | LVDS | -40~+85 | 2.5 |
| NV5032SK,SL,SM,SN | 15~2100 | 5.0x3.2 | LVDS | -40~+85 | 3.3 |
| NV5032SK,SL,SM,SN | 15~2100 | 5.0x3.2 | LVDS | -40~+85 | 3.3 |
| NV5032SK,SL,SM,SN | 15~2100 | 5.0x3.2 | LVDS | -40~+85 | 3.3 |
| NV5032SK,SL,SM,SN | 15~2100 | 5.0x3.2 | CML | -40~+85 | 1.8 |
| NV5032SK,SL,SM,SN | 15~2100 | 5.0x3.2 | CML | -40~+85 | 1.8 |
| NV5032SK,SL,SM,SN | 15~2100 | 5.0x3.2 | CML | -40~+85 | 1.8 |
| NV5032SK,SL,SM,SN | 15~2100 | 5.0x3.2 | CML | -40~+85 | 2.5 |
| NV5032SK,SL,SM,SN | 15~2100 | 5.0x3.2 | CML | -40~+85 | 2.5 |
| NV5032SK,SL,SM,SN | 15~2100 | 5.0x3.2 | CML | -40~+85 | 2.5 |
| NV5032SK,SL,SM,SN | 15~2100 | 5.0x3.2 | CML | -40~+85 | 3.3 |
| NV5032SK,SL,SM,SN | 15~2100 | 5.0x3.2 | CML | -40~+85 | 3.3 |
| NV5032SK,SL,SM,SN | 15~2100 | 5.0x3.2 | CML | -40~+85 | 3.3 |
| NV5032SK,SL,SM,SN | 15~700 | 5.0x3.2 | HCSL | -40~+85 | 1.8 |
| NV5032SK,SL,SM,SN | 15~700 | 5.0x3.2 | HCSL | -40~+85 | 1.8 |
| NV5032SK,SL,SM,SN | 15~700 | 5.0x3.2 | HCSL | -40~+85 | 1.8 |
| NV5032SK,SL,SM,SN | 15~700 | 5.0x3.2 | HCSL | -40~+85 | 2.5 |
| NV5032SK,SL,SM,SN | 15~700 | 5.0x3.2 | HCSL | -40~+85 | 2.5 |
| NV5032SK,SL,SM,SN | 15~700 | 5.0x3.2 | HCSL | -40~+85 | 2.5 |
| NV5032SK,SL,SM,SN | 15~700 | 5.0x3.2 | HCSL | -40~+85 | 3.3 |
| NV5032SK,SL,SM,SN | 15~700 | 5.0x3.2 | HCSL | -40~+85 | 3.3 |
| NV5032SK,SL,SM,SN | 15~700 | 5.0x3.2 | HCSL | -40~+85 | 3.3 |
| NV7050SK,SL,SM,SN | 15~2100 | 7.0x5.0 | LVPECL | -40~+85 | 1.8 |
| NV7050SK,SL,SM,SN | 15~2100 | 7.0x5.0 | LVPECL | -40~+85 | 1.8 |
| NV7050SK,SL,SM,SN | 15~2100 | 7.0x5.0 | LVPECL | -40~+85 | 1.8 |
| NV7050SK,SL,SM,SN | 15~2100 | 7.0x5.0 | LVPECL | -40~+85 | 2.5 |
