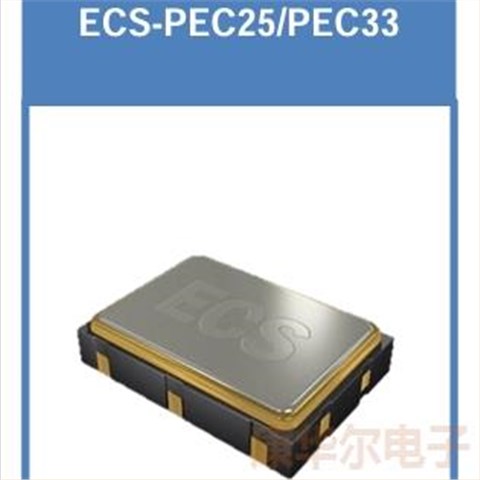

ECS-PEC33-1250-BN,低抖动应用晶振,PECL输出晶振,ECS石英振荡器,ECS-PEC33晶振
| 型号名称Model name： | ECS-PEC33 | 品牌 brand ： | ECS晶振 |
| 原厂编码Original model ： | ECS-PEC33-1250-BN | 尺寸size ： | 7.00mm x 5.00mm |
| 频率frequency ： | 125MHz | 电压 Supply Voltage： | 3.3V |
| 频率稳定性 Frequency Stability： | ±50ppm | 高度 Package Height： | 1.70mm |
| 工作温度 Operating Temperature： | -40℃~85℃ | 产品类型Product type： | XO |
| 产地Origin： | 美国进口ECS晶振 | 输出方式 Output Type： | PECL |
| 安装方式Installation ： | Surface Mount | 包装/类型Packaging / Type : | Tape/Reel |
| 最小包装数 MPQ ： | 1000 /reel | 制造商Manufacturer ： | 伊西斯 |
ECS-PEC33-1250-BN,低抖动应用晶振,PECL输出晶振,ECS石英振荡器,ECS-PEC33晶振
| ECS-100AX-300 | ECS | ECS-100X | XO | 30MHz | TTL | 5V |
| ECS-100AX-080 | ECS | ECS-100X | XO | 8MHz | TTL | 5V |
| ECS-100AX-100 | ECS | ECS-100X | XO | 10MHz | TTL | 5V |
| ECS-100AX-500 | ECS | ECS-100X | XO | 50MHz | TTL | 5V |
| ECS-100AX-040 | ECS | ECS-100X | 进口有源晶振 | 4MHz | TTL | 5V |
| ECS-100AX-160 | ECS | ECS-100X | XO | 16MHz | TTL | 5V |
| ECS-100AX-010 | ECS | ECS-100X | XO | 1MHz | TTL | 5V |
| ECS-100AX-200 | ECS | ECS-100X | XO | 20MHz | TTL | 5V |
| ECS-100AX-018 | ECS | ECS-100X | XO | 1.8432MHz | TTL | 5V |
| ECS-100AX-400 | ECS | ECS-100X | XO | 40MHz | TTL | 5V |
| ECS-100AX-012.2 | ECS | ECS-100X | XO | 1.2288MHz | TTL | 5V |
| ECS-100AX-060 | ECS | ECS-100X | XO | 6MHz | TTL | 5V |
| ECS-100AX-143 | ECS | ECS-100X | XO | 14.31818MHz | TTL | 5V |
| ECS-100AX-184 | ECS | ECS-100X | XO | 18.432MHz | TTL | 5V |
| ECS-PEC33-1000-BN | ECS | ECS-PEC33 | XO | 100MHz | PECL | 3.3V |
| ECS-100AX-196.6 | ECS | ECS-100X | XO | 19.6608MHz | TTL | 5V |
| ECS-PEC25-1555.2-B-N | ECS | ECS-PEC25 | XO | 155.52MHz | PECL | 2.5V |
| ECS-100AX-110.5 | ECS | ECS-100X | XO | 11.0592MHz | TTL | 5V |
| ECS-PEC33-1250-BN | ECS | ECS-PEC33 | XO | 125MHz | PECL | 3.3V |
| ECS-PEC25-1000-B-N | ECS | ECS-PEC25 | XO | 100MHz | PECL | 2.5V |
| ECS-PEC25-1250-B-N | ECS | ECS-PEC25 | XO | 125MHz | PECL | 2.5V |
| ECS-PEC33-2000-BN | ECS | ECS-PEC33 | XO | 200MHz | PECL | 3.3V |
| ECS-100AX-035 | ECS | ECS-100X | XO | 3.579545MHz | TTL | 5V |
| ECS-100AX-250 | ECS | ECS-100X | XO | 25MHz | TTL | 5V |
| ECS-100AX-098.3 | ECS | ECS-100X | XO | 9.8304MHz | TTL | 5V |
| ECS-100AX-320 | ECS | ECS-100X | XO | 32MHz | TTL | 5V |
| ECS-100AX-073 | ECS | ECS-100X | XO | 7.3728MHz | TTL | 5V |
| ECS-100AX-036 | ECS | ECS-100X | XO | 3.6864MHz | TTL | 5V |
| ECS-100AX-147.4 | ECS | ECS-100X | XO | 14.7456MHz | TTL | 5V |
| ECS-100AX-020 | ECS | ECS-100X | XO | 2MHz | TTL | 5V |
| ECS-100AX-480 | 石英晶体振荡器 | ECS-100X | XO | 48MHz | TTL | 5V |
| ECS-100AX-640 | ECS | ECS-100X | XO | 64MHz | TTL | 5V |
| ECS-PEC25-1562.5-B-N | ECS | ECS-PEC25 | XO | 156.25MHz | PECL | 2.5V |
| ECS-100AX-061 | ECS | ECS-100X | XO | 6.144MHz | TTL | 5V |
| ECS-PEC25-1062.5-B-N | ECS | ECS-PEC25 | XO | 106.25MHz | PECL | 2.5V |
| ECS-PEC33-1562.5-BN | ECS | ECS-PEC33 | XO | 156.25MHz | PECL | 3.3V |
| ECS-PEC33-1500-BN | ECS | ECS-PEC33 | XO | 150MHz | PECL | 3.3V |
