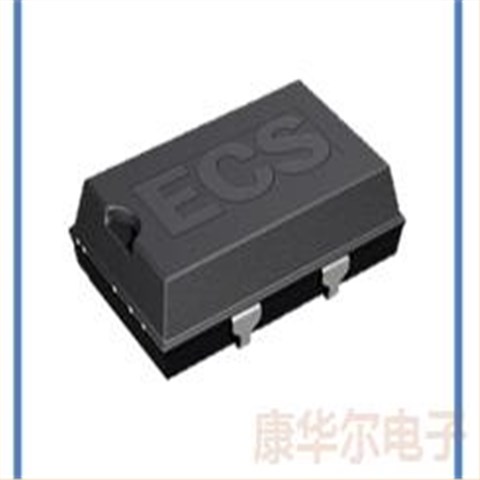

ECS-8FX振荡器,ECS宽温晶振,美国进口贴片晶振,CMOS输出晶振,ECS-8FA3X-100-TR
| 型号名称Model name： | ECS-8FX | 品牌 brand ： | ECS晶振 |
| 原厂编码Original model ： | ECS-8FA3X-100-TR | 尺寸size ： | 14.00mm x 8.65mm |
| 频率frequency ： | 10MHz | 电压 Supply Voltage： | 3.3V |
| 频率稳定性 Frequency Stability： | ±200ppm | 高度 Package Height： | 4.70mm |
| 工作温度 Operating Temperature： | -40℃~85℃ | 产品类型Product type： | XO |
| 产地Origin： | 美国进口晶振 | 输出方式 Output Type： | CMOS |
| 安装方式Installation ： | Surface Mount | 包装/类型Packaging / Type : | Tape/Reel |
| 最小包装数 MPQ ： | 1000 /reel | 制造商Manufacturer ： | 伊西斯 |
ECS-8FX振荡器,ECS宽温晶振,美国进口贴片晶振,CMOS输出晶振,ECS-8FA3X-100-TR
| ECS-8FMX-020-TR | ECS | ECS-8FX | XO | 2MHz | CMOS, TTL | 5V |
| ECS-8FMX-010-TR | ECS | ECS-8FX | XO | 1MHz | CMOS, TTL | 5V |
| ECS-8FMX-400-TR | ECS | ECS-8FX | XO | 40MHz | CMOS, TTL | 5V |
| ECS-8FA3X-100-TR | ECS | ECS-8FX | XO | 10MHz | CMOS | 3.3V |
| ECS-8FMX-160-TR | ECS | ECS-8FX | XO | 16MHz | CMOS, TTL | 5V |
| ECS-8FMX-050-TR | ECS | ECS-8FX | XO | 5MHz | CMOS, TTL | 5V |
| ECS-8FMX-018-TR | ECS | ECS-8FX | XO | 1.8432MHz | CMOS, TTL | 5V |
| ECS-8FMX-073-TR | ECS | ECS-8FX | XO | 7.3728MHz | CMOS, TTL | 5V |
| ECS-8FA3X-500-TR | ECS | ECS-8FX | XO | 50MHz | CMOS | 3.3V |
| ECS-8FMX-080-TR | ECS | ECS-8FX | XO | 8MHz | CMOS, TTL | 5V |
| ECS-8FA3X-250-TR | ECS | ECS-8FX | XO | 25MHz | CMOS | 3.3V |
| ECS-8FMX-221-TR | ECS | ECS-8FX | XO | 22.1184MHz | CMOS, TTL | 5V |
| ECS-8FMX-245.7-TR | ECS | ECS-8FX | XO | 24.576MHz | CMOS, TTL | 5V |
| ECS-8FMX-283.2-TR | ECS | ECS-8FX | XO | 28.322MHz | CMOS, TTL | 5V |
| ECS-8FMX-300-TR | ECS | ECS-8FX | XO | 30MHz | CMOS, TTL | 5V |
| ECS-8FMX-327.6-TR | ECS | ECS-8FX | XO | 32.768MHz | CMOS, TTL | 5V |
| ECS-8FMX-491.5-TR | ECS | ECS-8FX | XO | 49.152MHz | CMOS, TTL | 5V |
| ECS-8FA3X-020.48-TR | ECS | ECS-8FX | XO | 2.048MHz | CMOS | 3.3V |
| ECS-8FA3X-081.92-TR | ECS | ECS-8FX | XO | 8.192MHz | CMOS | 3.3V |
| ECS-8FA3X-110.5-TR | ECS | ECS-8FX | XO | 11.0592MHz | CMOS | 3.3V |
| ECS-8FA3X-120-TR | ECS | ECS-8FX | XO | 12MHz | CMOS | 3.3V |
| ECS-8FA3X-160-TR | ECS | ECS-8FX | XO | 16MHz | CMOS | 3.3V |
| ECS-8FA3X-184-TR | ECS | ECS-8FX | XO | 18.432MHz | CMOS | 3.3V |
| ECS-8FMX-143-TR | ECS | ECS-8FX | XO | 14.31818MHz | CMOS, TTL | 5V |
| ECS-8FMX-251.7-TR | ECS有源晶振 | ECS-8FX | XO | 25.175MHz | CMOS, TTL | 5V |
| ECS-8FMX-320-TR | ECS | ECS-8FX | XO | 32MHz | CMOS, TTL | 5V |
| ECS-8FMX-036-TR | ECS | ECS-8FX | XO | 3.6864MHz | CMOS, TTL | 5V |
| ECS-8FMX-098.3-TR | ECS | ECS-8FX | XO | 9.8304MHz | CMOS, TTL | 5V |
| ECS-8FMX-110.5-TR | ECS | ECS-8FX | XO | 11.0592MHz | CMOS, TTL | 5V |
| ECS-8FMX-122.8-TR | ECS | ECS-8FX | XO | 12.288MHz | CMOS, TTL | 5V |
| ECS-8FMX-250-TR | ECS | ECS-8FX | XO | 25MHz | CMOS, TTL | 5V |
| ECS-8FMX-015.44-TR | ECS | ECS-8FX | XO | 1.544MHz | CMOS, TTL | 5V |
| ECS-8FMX-020.48-TR | ECS | ECS-8FX | XO | 2.048MHz | CMOS, TTL | 5V |
| ECS-8FMX-120-TR | ECS | ECS-8FX | XO | 12MHz | CMOS, TTL | 5V |
| ECS-8FMX-184-TR | ECS | ECS-8FX | XO | 18.432MHz | CMOS, TTL | 5V |
| ECS-8FA3X-122.8-TR | ECS | ECS-8FX | XO | 12.288MHz | CMOS | 3.3V |
| ECS-8FMX-100-TR | ECS | ECS-8FX | XO | 10MHz | CMOS, TTL | 5V |
| ECS-8FMX-040-TR | ECS | ECS-8FX | XO | 4MHz | CMOS, TTL | 5V |
| ECS-8FA3X-163-TR | ECS | ECS-8FX | XO | 16.384MHz | CMOS | 3.3V |
| ECS-8FA3X-143-TR | ECS | ECS-8FX | XO | 14.31818MHz | CMOS | 3.3V |
