ECS-.327-12.5-17X-TR,ECS时钟晶振,8038贴片晶振,测量设备晶振,ECX-306X晶体

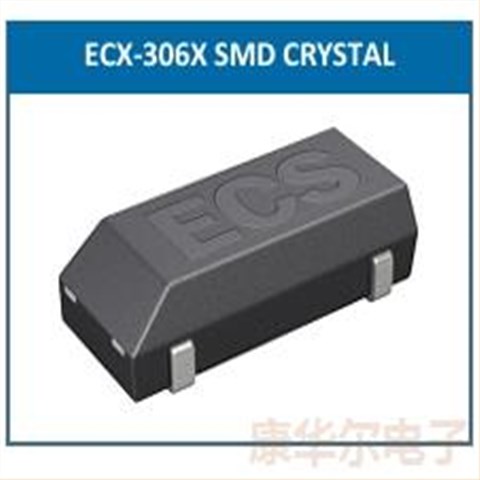

| 原厂型号Original model ： | ECS-.327-12.5-17X-TR | 型号名称Model name： | ECX-306X |
| 产品类型Product type： | kHz Crystal | 品牌 brand ： | ECS晶振 |
| 频率frequency ： | 32.768K晶振 | 产地Origin： | 美国 |
| 频率公差Tolerance ： | ±20ppm | 高度 Package Height： | 2.50mm |
| 负载电容 Load capacitance ： | 12.5pF | 等效串联电阻 ESR ： | 50 kOhms |
| 工作温度Operating Temperature ： | -40℃~85℃ | 包装/类型Packaging / Type : | Tape/Reel |
| 尺寸size ： | 8.00mm x 3.80mm | 最小包装数 MPQ ： | 1000 pcs |
| 制造商Manufacturer ： | ECS晶振 | 安装方式Installation ： | Surface Mount |
ECS-.327-12.5-17X-TR,ECS时钟晶振,8038贴片晶振,测量设备晶振,ECX-306X晶体
| ECS-.327-12.5-17X-TR | ECS | ECX-306X | kHz Crystal | 32.768kHz | ±20ppm | 12.5pF |
| ECS-.327-12.5-17X-C-TR | ECS | ECX-306X | kHz Crystal | 32.768kHz | ±10ppm | 12.5pF |
| ECS-.327-6-17X-C-TR | ECS | ECX-306X | kHz Crystal | 32.768kHz | ±10ppm | 6pF |
| ECS-.327-6-17X-TR | ECS | ECX-306X | kHz Crystal | 32.768kHz | ±20ppm | 6pF |
| ECS-.327-12.5-17-TR | ECS | ECX-306 | kHz Crystal | 32.768kHz | ±20ppm | 12.5pF |
| ECS-250-10-37Q-AES-TR | ECS | ECX-1637Q | MHz Crystal | 25MHz | ±25ppm | 10pF |
| ECS-271.2-10-37Q-ES-TR | ECS | ECX-1637Q | MHz Crystal | 27.12MHz | ±30ppm | 10pF |
| ECS-271.2-10-37Q-AES-TR | ECS | ECX-1637Q | MHz Crystal | 27.12MHz | ±25ppm | 10pF |
| ECS-245.7-10-37Q-ES-TR | ECS | ECX-1637Q | MHz Crystal | 24.576MHz | ±30ppm | 10pF |
| ECS-240-10-37Q-ES-TR | ECS | ECX-1637Q | MHz Crystal | 24MHz | ±30ppm | 10pF |
| ECS-200-10-37Q-ES-TR | ECS | ECX-1637Q | 8038贴片晶振 | 20MHz | ±30ppm | 10pF |
| ECS-300-10-37Q-ES-TR | ECS | ECX-1637Q | MHz Crystal | 30MHz | ±30ppm | 10pF |
| ECS-260-10-37Q-ES-TR | ECS | ECX-1637Q | MHz Crystal | 26MHz | ±30ppm | 10pF |
| ECS-.327-6-17-TR | ECS | ECX-306 | kHz Crystal | 32.768kHz | ±20ppm | 6pF |
| ECS-320-10-37Q-ES-TR | ECS | ECX-1637Q | MHz Crystal | 32MHz | ±30ppm | 10pF |
| ECS-250-10-37Q-ES-TR | ECS | ECX-1637Q | MHz Crystal | 25MHz | ±30ppm | 10pF |
| ECS-250-8-37Q-ES-TR | ECS | ECX-1637Q | MHz Crystal | 25MHz | ±30ppm | 8pF |
| ECS-200-10-37Q-AES-TR | ECS | ECX-1637Q | MHz Crystal | 20MHz | ±25ppm | 10pF |
| ECS-192-10-37Q-ES-TR | ECS | ECX-1637Q | MHz Crystal | 19.2MHz | ±30ppm | 10pF |
| ECS-192-10-37Q-EN-TR | ECS | ECX-1637Q | MHz Crystal | 19.2MHz | ±30ppm | 10pF |
| ECS-200-10-37Q-EN-TR | ECS | ECX-1637Q | MHz Crystal | 20MHz | ±30ppm | 10pF |
| ECS-240-10-37Q-EN-TR | ECS | ECX-1637Q | MHz Crystal | 24MHz | ±30ppm | 10pF |
| ECS-245.7-10-37Q-EN-TR | ECS | ECX-1637Q | MHz Crystal | 24.576MHz | ±30ppm | 10pF |
| ECS-250-10-37Q-EN-TR | ECS | ECX-1637Q | MHz Crystal | 25MHz | ±30ppm | 10pF |
| ECS-260-10-37Q-EN-TR | ECS | ECX-1637Q | MHz Crystal | 26MHz | ±30ppm | 10pF |
| ECS-270-10-37Q-EN-TR | ECS | ECX-1637Q | MHz Crystal | 27MHz | ±30ppm | 10pF |
| ECS-271.2-10-37Q-EN-TR | ECS | ECX-1637Q | MHz Crystal | 27.12MHz | ±30ppm | 10pF |
| ECS-300-10-37Q-EN-TR | ECS | ECX-1637Q | MHz Crystal | 30MHz | ±30ppm | 10pF |
| ECS-320-10-37Q-EN-TR | ECS | ECX-1637Q | MHz Crystal | 32MHz | ±30ppm | 10pF |
| ECS-400-10-37Q-EN-TR | ECS | ECX-1637Q | MHz Crystal | 40MHz | ±30ppm | 10pF |
| ECS-480-10-37Q-EN-TR | ECS晶振 | ECX-1637Q | MHz Crystal | 48MHz | ±30ppm | 10pF |
| ECS-192-10-37Q-EP-TR | ECS | ECX-1637Q | MHz Crystal | 19.2MHz | ±30ppm | 10pF |
| ECS-200-10-37Q-EP-TR | ECS | ECX-1637Q | MHz Crystal | 20MHz | ±30ppm | 10pF |
| ECS-240-10-37Q-EP-TR | ECS | ECX-1637Q | MHz Crystal | 24MHz | ±30ppm | 10pF |
| ECS-245.7-10-37Q-EP-TR | ECS | ECX-1637Q | MHz Crystal | 24.576MHz | ±30ppm | 10pF |
| ECS-250-10-37Q-EP-TR | ECS | ECX-1637Q | MHz Crystal | 25MHz | ±30ppm | 10pF |
| ECS-260-10-37Q-EP-TR | ECS | ECX-1637Q | MHz Crystal | 26MHz | ±30ppm | 10pF |
| ECS-270-10-37Q-EP-TR | ECS | ECX-1637Q | MHz Crystal | 27MHz | ±30ppm | 10pF |
| ECS-271.2-10-37Q-EP-TR | ECS | ECX-1637Q | MHz Crystal | 27.12MHz | ±30ppm | 10pF |
