7050无源贴片,CSM-8M谐振器,以太网应用晶振,ECS石英晶体,ECS-120-18-20BM-JEM-TR
| 型号名称Model name： | CSM-8M | 品牌 brand ： | ECS晶振 |

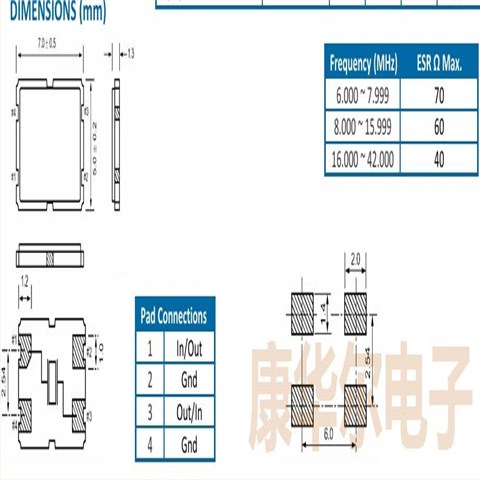

| 原厂型号Original model ： | ECS-120-18-20BM-JEM-TR | 尺寸size ： | 7.00mm x 5.00mm |
| 产品类型Product type： | MHz Crystal | 高度 Package Height： | 1.30mm |
| 频率frequency ： | 12MHz | 工作温度Operating Temperature ： | -20℃~70℃ |
| 频率公差Tolerance ： | ±20ppm | 等效串联电阻 ESR ： | 60 Ohms |
| 负载电容 Load capacitance ： | 18pF | 包装/类型Packaging / Type : | 7050贴片晶振 |
| 产地Origin： | 美国 | 制造商Manufacturer ： | 伊西斯 |
| 安装方式Installation ： | Surface Mount | 最小包装数 MPQ ： | 1000 pcs |
7050无源贴片,CSM-8M谐振器,以太网应用晶振,ECS石英晶体,ECS-120-18-20BM-JEM-TR
| ECS-80-18-20BQ-DS | ECS | CSM-8Q | MHz Crystal | 8MHz | ±30ppm | 18pF | -40℃~125℃ |
| ECS-073-18-20BM-JEN-TR | ECS | CSM-8M | MHz Crystal | 7.3728MHz | ±20ppm | 18pF | -40℃~85℃ |
| ECS-060-18-20BM-JEN-TR | ECS | CSM-8M | MHz Crystal | 6MHz | ±20ppm | 18pF | -40℃~85℃ |
| ECS-080-18-20BM-JEN-TR | ECS | CSM-8M谐振器 | MHz Crystal | 8MHz | ±20ppm | 18pF | -40℃~85℃ |
| ECS-120-18-20BQ-DS | ECS | CSM-8Q | MHz Crystal | 12MHz | ±30ppm | 18pF | -40℃~125℃ |
| ECS-240-12-20A-TR | ECS | CSM-8A | MHz Crystal | 24MHz | ±30ppm | 12pF | -10℃~70℃ |
| ECS-240-20-20A-TR | ECS | CSM-8A | MHz Crystal | 24MHz | ±30ppm | 20pF | -10℃~70℃ |
| ECS-80-20-20A-TR | ECS | CSM-8A | MHz Crystal | 8MHz | ±30ppm | 20pF | -10℃~70℃ |
| ECS-110.5-18-20BQ-DS | ECS | CSM-8Q | 车规晶振 | 11.0592MHz | ±30ppm | 18pF | -40℃~125℃ |
| ECS-143-S-20A-TR | ECS | CSM-8A | MHz Crystal | 14.31818MHz | ±30ppm | Series | -10℃~70℃ |
| ECS-480-20-20A-TR | ECS | CSM-8A | MHz Crystal | 48MHz | ±30ppm | 20pF | -10℃~70℃ |
| ECS-122.8-20-20A-TR | ECS | CSM-8A | MHz Crystal | 12.288MHz | ±30ppm | 20pF | -10℃~70℃ |
| ECS-330-S-20A-TR | ECS | CSM-8A | MHz Crystal | 33MHz | ±30ppm | Series | -10℃~70℃ |
| ECS-300-S-20A-TR | ECS | CSM-8A | MHz Crystal | 30MHz | ±30ppm | Series | -10℃~70℃ |
| ECS-100-18-20BQ-DS | ECS | CSM-8Q | MHz Crystal | 10MHz | ±30ppm | 18pF | -40℃~125℃ |
| ECS-196.6-S-20A-TR | ECS | CSM-8A | MHz Crystal | 19.6608MHz | ±30ppm | Series | -10℃~70℃ |
| ECS-147.4-S-20A-TR | ECS | CSM-8A | MHz Crystal | 14.7456MHz | ±30ppm | Series | -10℃~70℃ |
| ECS-360-S-20A-F-TR | ECS | CSM-8A | MHz Crystal | 36MHz | ±30ppm | Series | -10℃~70℃ |
| ECS-120-S-20A-TR | ECS | CSM-8A | MHz Crystal | 12MHz | ±30ppm | Series | -10℃~70℃ |
| ECS-160-S-20A-TR | ECS | CSM-8A | MHz Crystal | 16MHz | ±30ppm | Series | -10℃~70℃ |
| ECS-240.0014S20A-TR | ECS | CSM-8A | MHz Crystal | 24.00014MHz | ±30ppm | Series | -10℃~70℃ |
| ECS-320-S-20A-TR | ECS | CSM-8A | MHz Crystal | 32MHz | ±30ppm | Series | -10℃~70℃ |
| ECS-360-S-20A-TR | ECS | CSM-8A | MHz Crystal | 36MHz | ±30ppm | Series | -10℃~70℃ |
| ECS-080-18-20BM-JEM-TR | ECS | CSM-8M | MHz Crystal | 8MHz | ±20ppm | 18pF | -20℃~70℃ |
| ECS-060-18-20BM-JEM-TR | ECS | CSM-8M | MHz Crystal | 6MHz | ±20ppm | 18pF | -20℃~70℃ |
| ECS-120-18-20BM-JEM-TR | ECS | CSM-8M | MHz Crystal | 12MHz | ±20ppm | 18pF | -20℃~70℃ |
| ECS-073-18-20BM-JEM-TR | ECS | CSM-8M | MHz Crystal | 7.3728MHz | ±20ppm | 18pF | -20℃~70℃ |
| ECS-200-20-20BM-DP | ECS | CSM-8M | MHz Crystal | 20MHz | ±30ppm | 20pF | -40℃~105℃ |
7050无源贴片,CSM-8M谐振器,以太网应用晶振,ECS石英晶体,ECS-120-18-20BM-JEM-TR
