GEYER Electronic GmbH公司成立于1964年，由Rudolf Geyer一手创立。在1960年及1970年间GEYER Electronic GmbH只是慕尼黑Laim区的一家零售店，出售各种电子产品

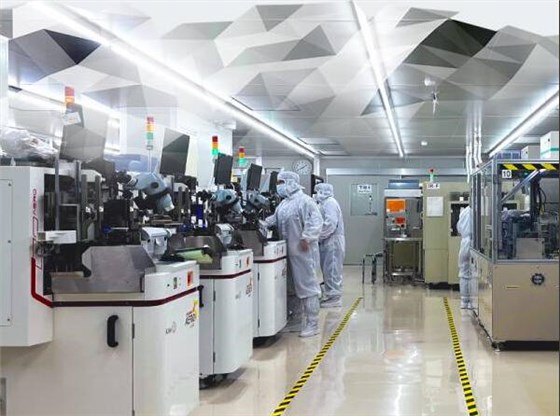

在1992年被收购后，GEYER Electronic GmbH开始将业务方向转型，专注的生产频率元器件产品和特殊电池的公司。并在中国台湾设立生产工厂，主要生产石英晶振以及石英晶体振荡器产品。生产面积超过2000平方米，每月生产能力约为7500万件。此外也在日本及韩国设立较小的生产基地。
GEYER晶振产品种类很多，有石英晶振，32.768K晶振，SPXO晶振，TCXO晶振，VCTCXO晶振，差分晶振等等。为了方便大家在选型的时候能够更方便快捷的选到心中所要的那颗GEYER晶振，我已经将产品型号以及对应的产品类型分好类、有什么技术问题或者其它问题想咨询的，可以直接联系我们的人员http://www.ctscrystal.com/contact.html
| SMD Quartz Crystals (MHz) | ||
| Type | Size mm | Freq. range |
| KX-2晶振 | 1.0 | 0.8 | 0.34 | 40.0 … 100.0 MHz |
| KX-3晶振 | 1.2 | 1.0 | 0.35 | 26.0 … 60.0 MHz |
| KX-4晶振 | 1.6 | 1.2 | 0.35 | 24.0 … 80.0 MHz |
| KX-5晶振 | 2.0 | 1.6 | 0.45 | 16.0 … 80.0 MHz |
| KX-6晶振 | 2.5 | 2.0 | 0.55 | 12.0 … 80.0 MHz |
| KX-7晶振 | 3.2 | 2.5 | 0.7 | 8.0 … 80.0 MHz |
| KX-8晶振 | 4.0 | 2.5 | 0.8 | 12.0 … 60.0 MHz |
| KX-9A晶振 | 5.0 | 3.2 | 0.85 | 7.680 … 300.0 MHz |
| KX-9B晶振 | 5.0 | 3.2 | 1.1 | 8.0 … 50.0 MHz |
| KX-12A晶振 | 6.0 | 3.5 | 1.0 | 8.0 … 150.0 MHz |
| KX-12B晶振 | 6.0 | 3.5 | 1.0 | 8.0 … 50.0 MHz |
| KX-13晶振 | 7.0 | 5.0 | 1.0 | 6.0 … 160.0 MHz |
| KX-14晶振 | 8.0 | 4.5 | 1.6 | 4.0 … 60.0 MHz |
| KX-20晶振 | 11.6 | 5.5 | 1.6 | 3.579545 … 25.0 MHz |
| KX-K晶振 | 12.3 | 4.5 | 4.2 | 3.5 … 70.0 MHz |
| KX-KS晶振 | 12.3 | 4.5 | 3.2 | 3.5 … 70.0 MHz |
| KX-C晶振 | 12.5 | 4.6 | 3.7 | 3.5 … 24.0 MHz |
| SMD Tuning Fork Crystals (kHz) | ||
| Type | Size mm | Freq. range |
| KX-327VT晶振 | 1.27 | 1.05 | 0.5 | 32.768 kHz |
| KX-327FT晶振 | 1.6 | 1.0 | 0.5 | 32.768 kHz |
| KX-327RT晶振 | 2.0 | 1.2 | 0.6 | 32.768 kHz |
| KX-327RF晶振 | 2.0 | 1.2 | 0.6 | 32.768 kHz |
| KX-327NHT晶振 | 3.2 | 1.5 | 0.8 | 32.768 kHz |
| KX-327NHF晶振 | 3.2 | 1.5 | 0.8 | 32.768 kHz |
| KX-327XS晶振 | 4.95 | 1.82 | 0.96 | 32.768 kHz |
| KX-327L晶振 | 7.0 | 1.5 | 1.4 | 32.768 kHz |
| KX-327S晶振 | 8.2 | 3.8 | 2.5 | 32.768 kHz |
| THT Crystals (MHz / kHz) | ||
| Type | Size mm | Freq. range |
| KX-26晶振 | 6.2 | ? 2 | 32.768 kHz |
| KX-38晶振 | 8.0 | ? 3 | 32.768 kHz |
| KX-49晶振 | 11.3 | 4.9 | 13.6 | 1.8432 … 200.0 MHz |
| KX-3H晶振 | 10.5 | 4.65 | 3.6 | 3.2 … 70.0 MHz |
| PXO/XO MHz Standard Oscillator | ||
| Type | Size mm | Freq. range |
| KXO-V93T晶振 | 1.6 | 1.2 | 0.8 | 3.0 … 80.0 MHz |
| KXO-V94晶振 | 2.0 | 1.6 | 0.8 | 1.0 … 125.0 MHz |
| KXO-V95晶振 | 2.5 | 2.0 | 1.0 | 1.0 … 160.0 MHz |
| KXO-V96晶振 | 3.2 | 2.5 | 1.2 | 1.0 … 160.0 MHz |
| KXO-V99晶振 | 5.0 | 3.2 | 1.2 | 0.5 … 200.0 MHz |
| KXO-97晶振 | 7.0 | 5.0 | 1.4 | 1.0 … 160.0 MHz |
| KXO-V97晶振 | 7.0 | 5.0 | 1.3 | 0.5 … 200.0 MHz |
| PXO/XO kHz Standard Oscillator | ||
| Type | Size mm | Freq. range |
| KXO-V94晶振 | 2.0 | 1.6 | 0.8 | 32.768 kHz |
| KXO-V95晶振 | 2.5 | 2.0 | 1.0 | 32.768 kHz |
| KXO-V32T晶振 | 3.2 | 1.5 | 0.9 | 32.768 kHz |
| KXO-V96晶振 | 3.2 | 2.5 | 1.2 | 32.768 kHz |
| KXO-V99晶振 | 5.0 | 3.2 | 1.2 | 32.768 kHz |
| KXO-97晶振 | 7.0 | 5.0 | 1.4 | 32.768 kHz |
| KXO-V97晶振 | 7.0 | 5.0 | 1.4 | 32.768 kHz |
| SSO | ||
| Type | Size mm | Freq. range |
| KXO-56T晶振 | 5.0 | 3.2 | 1.3 | 13.0 … 160.0 MHz |
| LVDS Clock Oscillator | ||
| Type | Size mm | Freq. range |
| KXO-V64晶振 | 3.2 | 2.5 | 1.0 | 10.0 … 212.5 MHz |
| KXO-V66晶振 | 5.0 | 3.2 | 1.2 | 10.0 … 800.0 MHz |
| KXO-V65晶振 | 7.0 | 5.0 | 1.7 | 10.0 … 800.0 MHz |
| VCXO-HCMOS | ||
| Type | Size mm | Freq. range |
| KXO-77晶振 | 3.2 | 2.5 | 1.0 | 1.0 … 170.0 MHz |
| KXO-70晶振 | 3.2 | 2.5 | 1.2 | 1.0 … 170.0 MHz |
| KXO-70R晶振 | 3.2 | 2.5 | 1.2 | 1.0 … 170.0 MHz |
| KXO-72晶振 | 5.0 | 3.2 | 1.3 | 1.0 … 170.0 MHz |
| KXO-72R晶振 | 5.0 | 3.2 | 1.3 | 1.0 … 170.0 MHz |
| KXO-75晶振 | 7.0 | 5.0 | 1.7 | 1.0 … 100.0 MHz |
| KXO-75R晶振 | 7.0 | 5.0 | 1.7 | 1.0 … 100.0 MHz |
| VCXO-LVDS | ||
| Type | Size mm | Freq. range |
| KXO-V62晶振 | 5.0 | 3.2 | 1.3 | 20.0 … 700.0 MHz |
| KXO-V63晶振 | 7.0 | 5.0 | 1.7 | 20.0 … 700.0 MHz |
| TCXO温补晶振 | ||
| Type | Size mm | Freq. range |
| KXO-88晶振 sine wave | 1.6 | 1.2 | 0.8 | 13.0 … 52.0 MHz |
| KXO-81晶振 sine wave | 2.0 | 1.6 | 0.7 | 13.0 … 52.0 MHz |
| KXO-81晶振 HCMOS | 2.0 | 1.6 | 0.7 | 9.5 … 60.0 MHz |
| KXO-86晶振 sine wave | 2.5 | 2.0 | 1.0 | 13.0 … 56.0 MHz |
| KXO-86晶振 HCMOS | 2.5 | 2.0 | 1.0 | 13.0 … 54.0 MHz |
| KXO-84晶振 sine wave | 3.2 | 2.5 | 1.2 | 13.0 … 52.0 MHz |
| KXO-84晶振 HCMOS | 3.2 | 2.5 | 1.2 | 8.0 … 70.0 MHz |
| KXO-83晶振 sine wave | 5.0 | 3.2 | 1.5 | 6.0 … 40.0 MHz |
| KXO-83晶振 HCMOS | 5.0 | 3.2 | 1.5 | 6.0 … 40.0 MHz |
| KXO-82晶振 sine wave | 7.0 | 5.0 | 2.4 | 9.6 … 52.0 MHz |
| KXO-82晶振 HCMOS | 7.0 | 5.0 | 2.4 | 1.20 … 200.0 MHz |
| VCTCXO晶振 | ||
| Type | Size mm | Freq. range |
| KXO-81晶振 sine wave | 2.0 | 1.6 | 0.7 | 13.0 … 52.0 MHz |
| KXO-86晶振 sine wave | 2.5 | 2.0 | 1.0 | 13.0 … 56.0 MHz |
| KXO-84晶振 sine wave | 3.2 | 2.5 | 1.2 | 13.0 … 52.0 MHz |
| KXO-84晶振 HCMOS | 3.2 | 2.5 | 1.0 | 8.0 … 40.0 MHz |
| KXO-83晶振 sine wave | 5.0 | 3.2 | 1.5 | 6.0 … 40.0 MHz |
| KXO-82晶振 sine wave | 7.0 | 5.0 | 2.4 | 9.60 … 52.0 MHz |
| KXO-82晶振 HCMOS | 7.0 | 5.0 | 2.4 | 1.20 … 200.0 MHz |
| PECL晶振 | ||
| Type | Size mm | Freq. range |
| KXO-68晶振 | 5.0 | 3.2 | 1.3 | 13.5 … 312.50 MHz |
| KXO-67晶振 | 7.0 | 5.0 | 1.7 | 13.5 … 312.50 MHz |
在数字时代里，电子元器件产品是必不可少的，几乎没有任何能离得开石英晶振和石英晶体振荡器。GEYER晶振在频率元器件产品制造领域里有着独特的优势，从最初咨询晶振产品再到生产与交付晶振产品的期间，我们都提供一流的质量，因为我们有着优秀的开发和服务团队以及一流的生产技术以及先进的生产设备。
| 编码 | 描述 | GEYER晶振型号 | 尺寸 | 频率 |
| 12.87000 | 32.7680 kHz Quartz SMD KX-327VT | KX-327V | 1.25 | 1.05 | 0.5 mm | 32.768 kHz |
| 12.87001 | 32.7680 kHz Quartz SMD KX-327VT | KX-327V | 1.25 | 1.05 | 0.5 mm | 32.768 kHz |
| 12.87002 | 32.7680 kHz Quartz SMD KX-327VT | KX-327V | 1.25 | 1.05 | 0.5 mm | 32.768 kHz |
| 12.87034 | 32.7680 kHz Quartz SMD KX-327RT | KX-327R | 2.0 | 1.2 | 0.6 mm | 32.768 kHz |
| 12.87080 | 32.7680 kHz Quartz SMD KX-327NHT | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz |
| 12.87081 | 32.7680 kHz Quartz SMD KX-327NHT | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz |
| 12.87083 | 32.7680 kHz Quartz SMD KX-327NHT | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz |
| 12.87086 | 32.7680 kHz Quartz SMD KX-327NHT | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz |
| 12.87090 | 32.7680 kHz Quartz SMD KX-327NHT | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz |
| 12.87095 | 32.7680 kHz Quartz SMD KX-327NHT | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz |
| 12.87105 | 32,7680 kHz Quartz SMD KX-327ST | KX-327S | 8.2 | 3.8 | 2.5 mm | 32.768 kHz |
| 12.87107 | 32.7680 kHz Quartz SMD KX-327S | KX-327S | 8.2 | 3.8 | 2.5 mm | 32.768 kHz |
| 12.87109 | 32.7680 kHz Quartz SMD KX-327ST | KX-327S | 8.2 | 3.8 | 2.5 mm | 32.768 kHz |
| 12.87110 | 32.7680 kHz Quartz SMD KX-327S | KX-327S | 8.2 | 3.8 | 2.5 mm | 32.768 kHz |
| 12.87111 | 32.7680 kHz Quartz SMD KX-327ST | KX-327S | 8.2 | 3.8 | 2.5 mm | 32.768 kHz |
| 12.87112 | 32.7680 kHz Quartz SMD KX-327S | KX-327S | 8.2 | 3.8 | 2.5 mm | 32.768 kHz |
| 12.87113 | 32.7680 kHz Quartz SMD KX-327S | KX-327S | 8.2 | 3.8 | 2.5 mm | 32.768 kHz |
| 12.87114 | 32.7680 kHz Quartz SMD KX-327ST | KX-327S | 8.2 | 3.8 | 2.5 mm | 32.768 kHz |
| 12.87115 | 32.7680 kHz Quartz SMD KX-327ST | KX-327S | 8.2 | 3.8 | 2.5 mm | 32.768 kHz |
| 12.87116 | 32.7680 kHz Quartz SMD KX-327S | KX-327S | 8.2 | 3.8 | 2.5 mm | 32.768 kHz |
| 12.87118 | 32.7680 kHz Quartz SMD KX-327S | KX-327S | 8.2 | 3.8 | 2.5 mm | 32.768 kHz |
| 12.87119 | 32.7680 kHz Quartz SMD KX-327ST | KX-327S | 8.2 | 3.8 | 2.5 mm | 32.768 kHz |
| 12.87120 | 32.7680 kHz Quartz SMD KX-327XS | KX-327XS | 4.95 | 1.82 | 0.96 mm | 32.768 kHz |
| 12.87121 | 32.7680 kHz Quartz SMD KX-327XST | KX-327XS | 4.95 | 1.82 | 0.96 mm | 32.768 kHz |
| 12.87123 | 32.7680 kHz Quartz SMD KX-327XS | KX-327XS | 4.95 | 1.82 | 0.96 mm | 32.768 kHz |
| 12.87126 | 32.7680 kHz Quartz SMD KX-327XS | KX-327XS | 4.95 | 1.82 | 0.96 mm | 32.768 kHz |
| 12.87127 | 32.7680 kHz Quartz SMD KX-327XST | KX-327XS | 4.95 | 1.82 | 0.96 mm | 32.768 kHz |
| 12.87128 | 32.7680 kHz Quartz SMD KX-327XST | KX-327XS | 4.95 | 1.82 | 0.96 mm | 32.768 kHz |
| 12.87129 | 32.7680 kHz Quartz SMD KX-327XST | KX-327XS | 4.95 | 1.82 | 0.96 mm | 32.768 kHz |
| 12.87130 | 32.7680 kHz Quartz SMD KX-327L | KX-327L | 7.0 | 1.5 | 1.4 mm | 32.768 kHz |
| 12.87131 | 32.7680 kHz Quartz SMD KX-327LT | KX-327L | 7.0 | 1.5 | 1.4 mm | 32.768 kHz |
| 12.87132 | 32.7680 kHz Quartz SMD KX-327L | KX-327L | 7.0 | 1.5 | 1.4 mm | 32.768 kHz |
| 12.87133 | 32.7680 kHz Quartz SMD KX-327L | KX-327L | 7.0 | 1.5 | 1.4 mm | 32.768 kHz |
| 12.87134 | 32.7680 kHz Quartz SMD KX-327L | KX-327L | 7.0 | 1.5 | 1.4 mm | 32.768 kHz |
| 12.87135 | 32.7680 kHz Quartz SMD KX-327LT | KX-327L | 7.0 | 1.5 | 1.4 mm | 32.768 kHz |
| 12.87136 | 32.7680 kHz Quartz SMD KX-327LT | KX-327L | 7.0 | 1.5 | 1.4 mm | 32.768 kHz |
| 12.87137 | 32.7680 kHz Quartz SMD KX-327LT | KX-327L | 7.0 | 1.5 | 1.4 mm | 32.768 kHz |
| 12.87138 | 32.7680 kHz Quartz SMD KX-327LT | KX-327L | 7.0 | 1.5 | 1.4 mm | 32.768 kHz |
| 12.87139 | 32.7680 kHz Quartz SMD KX-327LT | KX-327L | 7.0 | 1.5 | 1.4 mm | 32.768 kHz |
| 12.87143 | 32.7680 kHz Quartz SMD KX-327NHT | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz |
| 12.87144 | 32.7680 kHz Quartz SMD KX-327NHT | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz |
| 12.87145 | 32.7680 kHz Quartz SMD KX-327NHT | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz |
| 12.87146 | 32.7680 kHz Quartz SMD KX-327NHT | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz |
| 12.87147 | 32.7680 kHz Quartz SMD KX-327NHT | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz |
| 12.87148 | 32.7680 kHz Quartz SMD KX-327NHT | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz |
| 12.87149 | 32.7680 kHz Quartz SMD KX-327NHT | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz |
| 12.87150 | 32.7680 kHz Quartz SMD KX-327NHT | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz |
| 12.87151 | 32.7680 kHz Quartz SMD KX-327NHT | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz |
| 12.87152 | 32.7680 kHz Quartz SMD KX-327NHH | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz |
| 12.87153 | 32.7680 kHz Quartz SMD KX-327NHT | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz |
| 12.87155 | 32.7680 kHz Quartz SMD KX-327NHE | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz |
| 12.87157 | 32.7680 kHz Quartz SMD KX-327NHT | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz |
| 12.87158 | 32.7680 kHz Quartz SMD KX-327NHT | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz |
| 12.87159 | 32.7680 kHz Quartz SMD KX-327NHT | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz |
| 12.87160 | 32.7680 kHz Quartz SMD KX-327RT | KX-327R | 2.0 | 1.2 | 0.6 mm | 32.768 kHz |
| 12.87161 | 32.7680 kHz Quartz SMD KX-327RT | KX-327R | 2.0 | 1.2 | 0.6 mm | 32.768 kHz |
| 12.87163 | 32.7680 kHz Quartz SMD KX-327RT | KX-327R | 2.0 | 1.2 | 0.6 mm | 32.768 kHz |
| 12.87164 | 32.7680 kHz Quartz SMD KX-327RT | KX-327R | 2.0 | 1.2 | 0.6 mm | 32.768 kHz |
| 12.87165 | 32.7680 kHz Quartz SMD KX-327RT | KX-327R | 2.0 | 1.2 | 0.6 mm | 32.768 kHz |
| 12.87166 | 32.7680 kHz Quartz SMD KX-327RF | KX-327R | 2.0 | 1.2 | 0.6 mm | 32.768 kHz |
| 12.87167 | 32.7680 kHz Quartz SMD KX-327RT | KX-327R | 2.0 | 1.2 | 0.6 mm | 32.768 kHz |
| 12.87168 | 32.7680 kHz Quartz SMD KX-327RF | KX-327R | 2.0 | 1.2 | 0.6 mm | 32.768 kHz |
| 12.87169 | 32.7680 kHz Quartz SMD KX-327RT | KX-327R | 2.0 | 1.2 | 0.6 mm | 32.768 kHz |
| 12.87170 | 32.7680 kHz Quartz SMD KX-327FT | KX-327F | 1.6 | 1.0 | 0.5 mm | 32.768 kHz |
| 12.87171 | 32.7680 kHz Quartz SMD KX-327FT | KX-327F | 1.6 | 1.0 | 0.5 mm | 32.768 kHz |
| 12.87172 | 32.7680 kHz Quartz SMD KX-327FT | KX-327F | 1.6 | 1.0 | 0.5 mm | 32.768 kHz |
| 12.87173 | 32.7680 kHz Quartz SMD KX-327FT | KX-327F | 1.6 | 1.0 | 0.5 mm | 32.768 kHz |
| 12.87174 | 32.7680 kHz Quartz SMD KX-327FT | KX-327F | 1.6 | 1.0 | 0.5 mm | 32.768 kHz |
| 12.87175 | 32.7680 kHz Quartz SMD KX-327FT | KX-327F | 1.6 | 1.0 | 0.5 mm | 32.768 kHz |
| 12.87176 | 32.7680 kHz Quartz SMD KX-327FT | KX-327F | 1.6 | 1.0 | 0.5 mm | 32.768 kHz |
| 12.87177 | 32.7680 kHz Quartz SMD KX-327FT | KX-327F | 1.6 | 1.0 | 0.5 mm | 32.768 kHz |
| 12.87178 | 32.7680 kHz Quartz SMD KX-327FT | KX-327F | 1.6 | 1.0 | 0.5 mm | 32.768 kHz |
| 12.87180 | 32.7680 kHz Quartz SMD KX-327NHF | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz |
| 12.87181 | 32.7680 kHz Quartz SMD KX-327NHF | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz |
| 12.87182 | 32.7680 kHz Quartz SMD KX-327NHF | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz |
| 12.87183 | 32.7680 kHz Quartz SMD KX-327NHF | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz |
| 12.87186 | 32.7680 kHz Quartz SMD KX-327RF | KX-327R | 2.0 | 1.2 | 0.6 mm | 32.768 kHz |
| 12.87187 | 32.7680 kHz Quartz SMD KX-327RT | KX-327R | 2.0 | 1.2 | 0.6 mm | 32.768 kHz |
| 12.87188 | 32.7680 kHz Quartz SMD KX-327RF | KX-327R | 2.0 | 1.2 | 0.6 mm | 32.768 kHz |
| 12.60000 | 16.0 MHz Quartz SMD KX-7T | KX-7 | 3.2 | 2.5 | 0.8 mm | 16.0 MHz |
| 12.60001 | 27.120 MHz Quartz SMD KX-7 | KX-7 | 3.2 | 2.5 | 0.8 mm | 27.120 MHz |
| 12.60003 | 26.0 MHz Quartz SMD KX-7 | KX-7 | 3.2 | 2.5 | 0.8 mm | 26.0 MHz |
| 12.60004 | 13.8240 MHz Quartz SMD KX-7T | KX-7 | 3.2 | 2.5 | 0.8 mm | 13.8240 MHz |
| 12.60005 | 26.0 MHz Quartz SMD KX-7T | KX-7 | 3.2 | 2.5 | 0.8 mm | 26.0 MHz |
| 12.60006 | 16.0 MHz Quartz SMD KX-7T | KX-7 | 3.2 | 2.5 | 0.8 mm | 16.0 MHz |
| 12.60007 | 14.74560 MHz Quartz SMD KX-7T | KX-7 | 3.2 | 2.5 | 0.8 mm | 14.74560 MHz |
| 12.60009 | 25.0 MHz Quartz SMD KX-7T | KX-7 | 3.2 | 2.5 | 0.8 mm | 25.0 MHz |
| 12.60010 | 16.3840 MHz Quartz SMD KX-7T | KX-7 | 3.2 | 2.5 | 0.8 mm | 16.3840 MHz |
| 12.60011 | 40.0 MHz Quartz SMD KX-7 | KX-7 | 3.2 | 2.5 | 0.8 mm | 40.0 MHz |
| 12.60012 | 16.0 MHz Quartz SMD KX-7E | KX-7 | 3.2 | 2.5 | 0.8 mm | 16.0 MHz |
| 12.60013 | 50.0 MHz Quartz SMD KX-7T | KX-7 | 3.2 | 2.5 | 0.8 mm | 50.0 MHz |
| 12.60014 | 13.0 MHz Quartz SMD KX-7T | KX-7 | 3.2 | 2.5 | 0.8 mm | 13.0 MHz |
| 12.60015 | 12.0 MHz Quartz SMD KX-7 | KX-7 | 3.2 | 2.5 | 0.8 mm | 12.0 MHz |
| 12.60016 | 12.0 MHz Quartz SMD KX-7F | KX-7 | 3.2 | 2.5 | 0.8 mm | 12.0 MHz |
| 12.60017 | 32.0 MHz Quartz SMD KX-7T | KX-7 | 3.2 | 2.5 | 0.8 mm | 32.0 MHz |
| 12.60018 | 24.0 MHz Quartz SMD KX-7T | KX-7 | 3.2 | 2.5 | 0.8 mm | 24.0 MHz |
| 12.60019 | 26.0 MHz Quartz SMD KX-7 | KX-7 | 3.2 | 2.5 | 0.8 mm | 26.0 MHz |
| 12.60020 | 12.0 MHz Quartz SMD KX-7F | KX-7 | 3.2 | 2.5 | 0.8 mm | 12.0 MHz |
| 12.60021 | 16.0 MHz Quartz SMD KX-7 | KX-7 | 3.2 | 2.5 | 0.8 mm | 16.0 MHz |
| 12.60022 | 8.0 MHz Quartz SMD KX-7T | KX-7 | 3.2 | 2.5 | 0.8 mm | 8.0 MHz |
| 12.60023 | 48.0 MHz Quartz SMD KX-7E | KX-7 | 3.2 | 2.5 | 0.8 mm | 48.0 MHz |
| 12.60024 | 27.0 MHz Quartz SMD KX-7E | KX-7 | 3.2 | 2.5 | 0.8 mm | 27.0 MHz |
| 12.60025 | 25.0 MHz Quartz SMD KX-7T | KX-7 | 3.2 | 2.5 | 0.8 mm | 25.0 MHz |
| 12.60026 | 30.0 MHz Quartz SMD KX-7 | KX-7 | 3.2 | 2.5 | 0.8 mm | 30.0 MHz |
| 12.60027 | 19.20 MHz Quartz SMD KX-7 | KX-7 | 3.2 | 2.5 | 0.8 mm | 19,20 MHz |
| 12.60028 | 8.0 MHz Quartz SMD KX-7T | KX-7 | 3.2 | 2.5 | 0.8 mm | 8.0 MHz |
| 12.60029 | 24.0 MHz Quartz SMD KX-7T | KX-7 | 3.2 | 2.5 | 0.8 mm | 24.0 MHz |
| 12.60030 | 32.0 MHz Quartz SMD KX-7T | KX-7 | 3.2 | 2.5 | 0.8 mm | 32.0 MHz |
| 12.60031 | 25.0 MHz Quartz SMD KX-7T | KX-7 | 3.2 | 2.5 | 0.8 mm | 25.0 MHz |
| 12.60032 | 14.74560 MHz Quartz SMD KX-7T | KX-7 | 3.2 | 2.5 | 0.8 mm | 14.74560 MHz |
| 12.60033 | 14.74560 MHz Quartz SMD KX-7F | KX-7 | 3.2 | 2.5 | 0.8 mm | 14.74560 MHz |
| 12.60034 | 50.0 MHz Quartz SMD KX-7T | KX-7 | 3.2 | 2.5 | 0.8 mm | 50.0 MHz |
| 12.60035 | 12.0 MHz Quartz SMD KX-7 | KX-7 | 3.2 | 2.5 | 0.8 mm | 12.0 MHz |
| 12.60036 | 11.05920 MHz Quartz SMD KX-7T | KX-7 | 3.2 | 2.5 | 0.8 mm | 11.05920 MHz |
| 12.60037 | 25.0 MHz Quartz SMD KX-7E | KX-7 | 3.2 | 2.5 | 0.8 mm | 25.0 MHz |
| 12.60038 | 30.0 MHz Quartz SMD KX-7 | KX-7 | 3.2 | 2.5 | 0.8 mm | 30.0 MHz |
| 12.60039 | 12.0 MHz Quartz SMD KX-7T | KX-7 | 3.2 | 2.5 | 0.8 mm | 12.0 MHz |
| 12.60040 | 8.0 MHz Quartz SMD KX-7E | KX-7 | 3.2 | 2.5 | 0.8 mm | 8.0 MHz |
| 12.60041 | 8.0 MHz Quartz SMD KX-7T | KX-7 | 3.2 | 2.5 | 0.8 mm | 8.0 MHz |
| 12.60042 | 27.120 MHz Quartz SMD KX-7T | KX-7 | 3.2 | 2.5 | 0.8 mm | 27.120 MHz |
| 12.60043 | 25.0 MHz Quartz SMD KX-7E | KX-7 | 3.2 | 2.5 | 0.8 mm | 25.0 MHz |
| 12.60044 | 30.0 MHz Quartz SMD KX-7 | KX-7 | 3.2 | 2.5 | 0.8 mm | 30.0 MHz |
| 12.60045 | 24.0 MHz Quartz SMD KX-7 | KX-7 | 3.2 | 2.5 | 0.8 mm | 24.0 MHz |
| 12.60046 | 28.6363 MHz Quartz SMD KX-7E | KX-7 | 3.2 | 2.5 | 0.8 mm | 28.63630 MHz |
| 12.60047 | 40.0 MHz Quartz SMD KX-7T | KX-7 | 3.2 | 2.5 | 0.8 mm | 40.0 MHz |
| 12.60048 | 8.0 MHz Quartz SMD KX-7F | KX-7 | 3.2 | 2.5 | 0.8 mm | 8.0 MHz |
| 12.60049 | 8.0 MHz Quartz SMD KX-7F | KX-7 | 3.2 | 2.5 | 0.8 mm | 8.0 MHz |
| 12.60050 | 20.0 MHz Quartz SMD KX-7E | KX-7 | 3.2 | 2.5 | 0.8 mm | 20.0 MHz |
| 12.60051 | 24.0 MHz Quartz SMD KX-7 | KX-7 | 3.2 | 2.5 | 0.8 mm | 24.0 MHz |
| 12.60052 | 24.0 MHz Quartz SMD KX-7 | KX-7 | 3.2 | 2.5 | 0.8 mm | 24.0 MHz |
| 12.60053 | 25.0 MHz Quartz SMD KX-7 | KX-7 | 3.2 | 2.5 | 0.8 mm | 25.0 MHz |
| 12.60054 | 25.0 MHz Quartz SMD KX-7 | KX-7 | 3.2 | 2.5 | 0.8 mm | 25.0 MHz |
| 12.60055 | 30.0 MHz Quartz SMD KX-7T | KX-7 | 3.2 | 2.5 | 0.8 mm | 30.0 MHz |
| 12.60056 | 16.384 MHz Quartz SMD KX-7T | KX-7 | 3.2 | 2.5 | 0.8 mm | 16.3840 MHz |
| 12.60057 | 25.0 MHz Quartz SMD KX-7T | KX-7 | 3.2 | 2.5 | 0.8 mm | 25.0 MHz |
| 12.60058 | 16.0 MHz Quartz SMD KX-7T | KX-7 | 3.2 | 2.5 | 0.8 mm | 16.0 MHz |
| 12.60059 | 25.0 MHz Quartz SMD KX-7T | KX-7 | 3.2 | 2.5 | 0.8 mm | 25.0 MHz |
| 12.60060 | 16.0 MHz Quartz SMD KX-7H | KX-7 | 3.2 | 2.5 | 0.8 mm | 16.0 MHz |
| 12.60061 | 48.0 MHz Quartz SMD KX-7T | KX-7 | 3.2 | 2.5 | 0.8 mm | 48.0 MHz |
| 12.60062 | 12.0 MHz Quartz SMD KX-7E | KX-7 | 3.2 | 2.5 | 0.8 mm | 12.0 MHz |
| 12.60063 | 8.0 MHz Quartz SMD KX-7T | KX-7 | 3.2 | 2.5 | 0.8 mm | 8.0 MHz |
| 12.60064 | 10.0 MHz Quartz SMD KX-7T | KX-7 | 3.2 | 2.5 | 0.8 mm | 10.0 MHz |
| 12.60065 | 26.2144 MHz Quartz SMD KX-7 | KX-7 | 3.2 | 2.5 | 0.8 mm | 26.21440 MHz |
| 12.60066 | 26.0 MHz Quartz SMD KX-7T | KX-7 | 3.2 | 2.5 | 0.8 mm | 26.0 MHz |
| 12.60067 | 20.0 MHz Quartz SMD KX-7T | KX-7 | 3.2 | 2.5 | 0.8 mm | 20.0 MHz |
| 12.60068 | 28.636360 MHz Quartz SMD KX-7E | KX-7 | 3.2 | 2.5 | 0.8 mm | 28.636360 MHz |
| 12.60069 | 25.0 MHz Quartz SMD KX-7E | KX-7 | 3.2 | 2.5 | 0.8 mm | 25.0 MHz |
| 12.60070 | 12.0 MHz Quartz SMD KX-7E | KX-7 | 3.2 | 2.5 | 0.8 mm | 12.0 MHz |
| 12.60072 | 13.560 MHz Quartz SMD KX-7T | KX-7 | 3.2 | 2.5 | 0.8 mm | 13.560 MHz |
| 12.60075 | 30.0 MHz Quartz SMD KX-7F | KX-7 | 3.2 | 2.5 | 0.8 mm | 30.0 MHz |
| 12.60077 | 16.0 MHz Quartz SMD KX-7E | KX-7 | 3.2 | 2.5 | 0.8 mm | 16.0 MHz |
| 12.60078 | 32.0 MHz Quartz SMD KX-7T | KX-7 | 3.2 | 2.5 | 0.8 mm | 32.0 MHz |
| 12.60079 | 8.0 MHz Quartz SMD KX-7 | KX-7 | 3.2 | 2.5 | 0.8 mm | 8.0 MHz |
| 12.60080 | 16.0 MHz Quartz SMD KX-7 | KX-7 | 3.2 | 2.5 | 0.8 mm | 16.0 MHz |
| 12.60081 | 16.2570 MHz Quartz SMD KX-7T | KX-7 | 3.2 | 2.5 | 0.8 mm | 16.2570 MHz |
| 12.60082 | 24.0 MHz Quartz SMD KX-7 | KX-7 | 3.2 | 2.5 | 0.8 mm | 24.0 MHz |
| 12.60083 | 12.80 MHz Quartz SMD KX-7 | KX-7 | 3.2 | 2.5 | 0.8 mm | 12.80 MHz |
| 12.60084 | 18.4320 MHz Quartz SMD KX-7T | KX-7 | 3.2 | 2.5 | 0.8 mm | 18.4320 MHz |
O 26.000000-JSO32D1AC-D-2V3-T3-N-D,汽车电子控制板晶振,JAUCH晶振
TCXO振荡器,进口晶振,O 19.20-JTP75HC-J-K-3.3-LF
